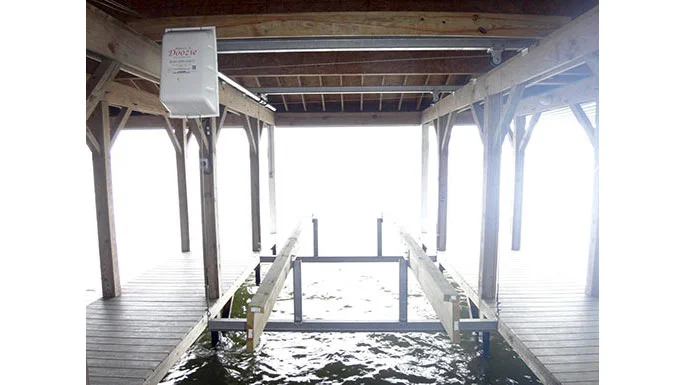

Doozie Boat House Overhead Side Mount Boat Lifts

The Overhead Side Mount Lift comes in two different weight capacities: 4000lbs and 6000lbs.

By adding upper beams to your boat house, you are allowing installation flexibility providing leeway in where the lifting points are located.

The Overhead Side Mount Boat Lift differs from the Overhead Center Mount because it has the Motor, Gear Plate, and Pipe mounted on one of the sides of your lift, instead of the center. Having it mounted on the side allows for much more room above your boat, making this lift ideal for a wakeboard boat or a boat with a t-top.

  • Capacities:
    • 4,000 lbs
    • 6,000 lbs
  • Hot Dip Galvanized
  • Designed to lift boat from from above, under roof
  • Lifts come complete (except wood)
    • Pipe, steel, parts, cable, and hardware
    • Spring loaded up/down switch for safety
    • 2-piece motor/drive cover
    • Carpet for runners
  • Side mounted drive
  • Lift range 10'
  • The Boat House Overhead Side Mount Boat Lifts are available with:
    • 8', 9', or 10' cradles
    • Inboard Pontoon Cradles
    • 12' or 14' Weighted Straps
    • Aluminum Double Jet Ski Platform
  • Optional Remote Control

Contact US

For more information contact us at: 800-586-9952 or email us at:
