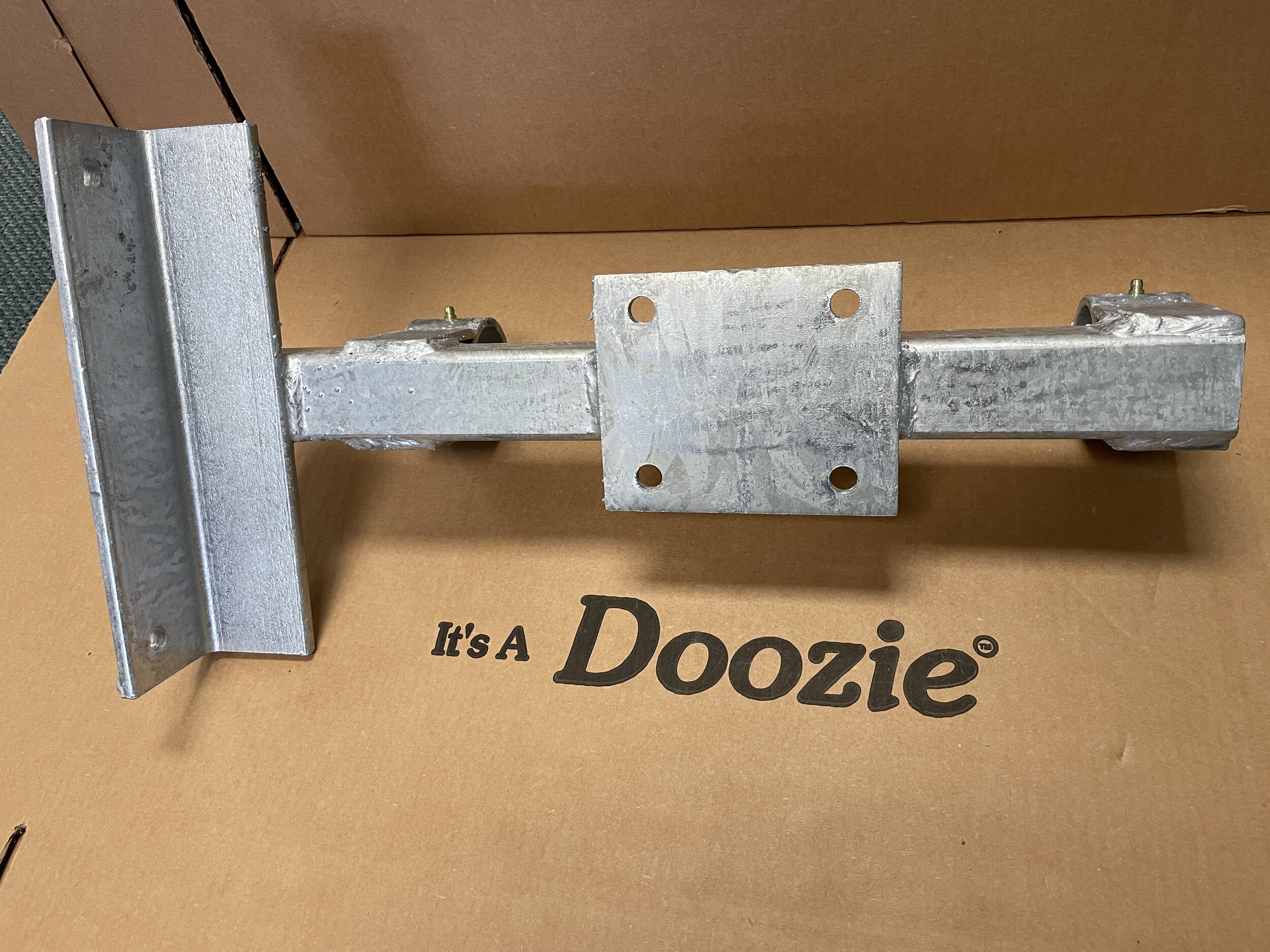

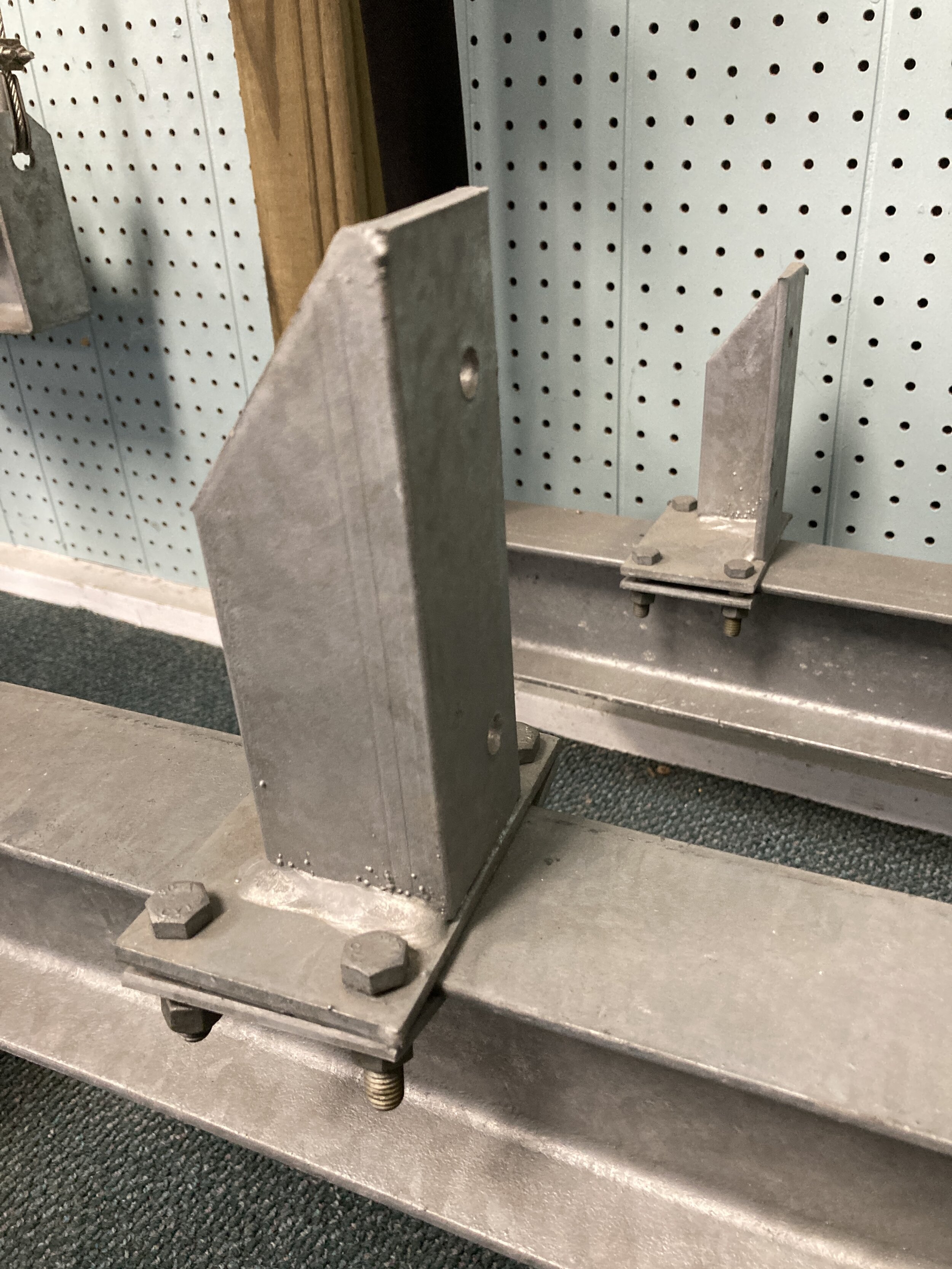

adjustable bracket set 17 inch

These adjustable brackets mount straight onto your cradle (the steel beam). They are 17 inches tall and you will put two 2x6x10 pieces of wood on them if your cradles are 8 feet apart. 2x6x8 if your cradles are 6 feet apart. We do not sell the wood but we do sell the carpet for the wood in 12inch strips. Most common boats found on these brackets are JetSkis in a double JetSki lift. Mini model for how they will look on your boatlift are included in the pictures. Most brackets are set 24 inches apart for standard lift installs.

Adjustable Bracket set 10 inch

These adjustable brackets mount straight onto your cradle (the steel beam). They are 10 inches tall and you will put two 2x12x12 pieces of wood on them. We do not sell the wood but we do sell the carpet for the wood in 12inch strips. Most common boats found on these brackets include wakeboard and wake surf boats. Mini model for how they will look on your boatlift are included in the pictures. Most brackets are set 32 inches apart for standard lift installs. These are prefect if you are converting your pontoon/tritoon lift to a boat lift. **Note: Please make sure your lift can hold the capacity of your new boat before attempting to put your new boat on the lift.

Adjustable Bracket set 6 inch

These adjustable brackets mount straight onto your cradle (the steel beam). They are 6 inches tall and you will put two 2x8x12 pieces of wood on them. We do not sell the wood but we do sell the carpet for the wood in 12inch strips. Most common boats found on these brackets include fishing boats and ski boats. Mini model for how they will look on your boatlift are included in the pictures. Most brackets are set 32 inches apart for standard lift installs. These are prefect if you are converting your pontoon/tritoon lift to a boat lift. **Note: Please make sure your lift can hold the capacity of your new boat before attempting to put your new boat on the lift.

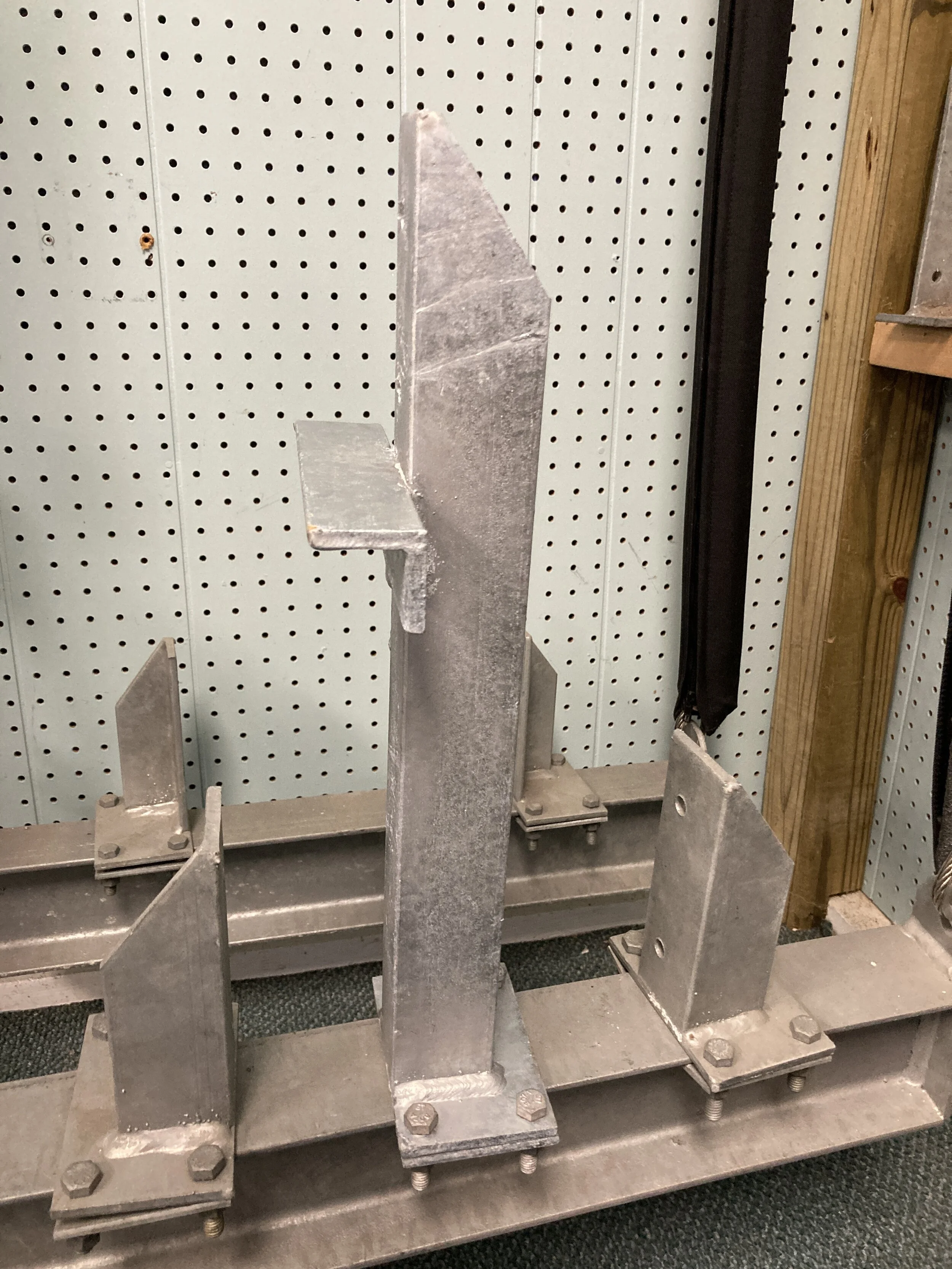

Adjustable Brackets - Large for 6” cradles

These adjustable brackets mount straight onto your cradle (the steel beam) of an 8,000lb or more lift. They are 10 inches tall with a lip on one side and you will put two 2x12x12 pieces of wood on them. We do not sell the wood but we do sell the carpet for the wood in 12 feet strips. Most common boats found on these brackets include wake surf and salt water boats. Most brackets are set 32 inches apart for standard lift installs. These are prefect if you are converting your pontoon/tritoon lift to a boat lift. **Note: Please make sure your lift can hold the capacity of your new boat before attempting to put your new boat on the lift.

Adjustable double jet ski brackets

These brackets are used to hold two jet skis on one boat lift with 9 or 10 foot cradles. These can be used on our boathouse and 4-post lifts. These adjustable brackets mount straight onto your cradle (the steel beam). The tall ones are 17 inches and you will put two 2x6x10 pieces of wood on them if your cradles are 8 feet apart. 2x6x8 if your cradles are 6 feet apart. The small ones are 4 inches and you will also put 2x6x10 or 2x6x8. We do not sell the wood but we do sell the carpet for the wood in 12 inch strips. Most brackets are set 24 inches apart for standard Jet ski lift installs. 2x6x8 if your cradles are 6 feet apart. Not all the hardware is shown in the picture. Each bolt bag has 4 plates, 4 bolts, and 4 nuts.

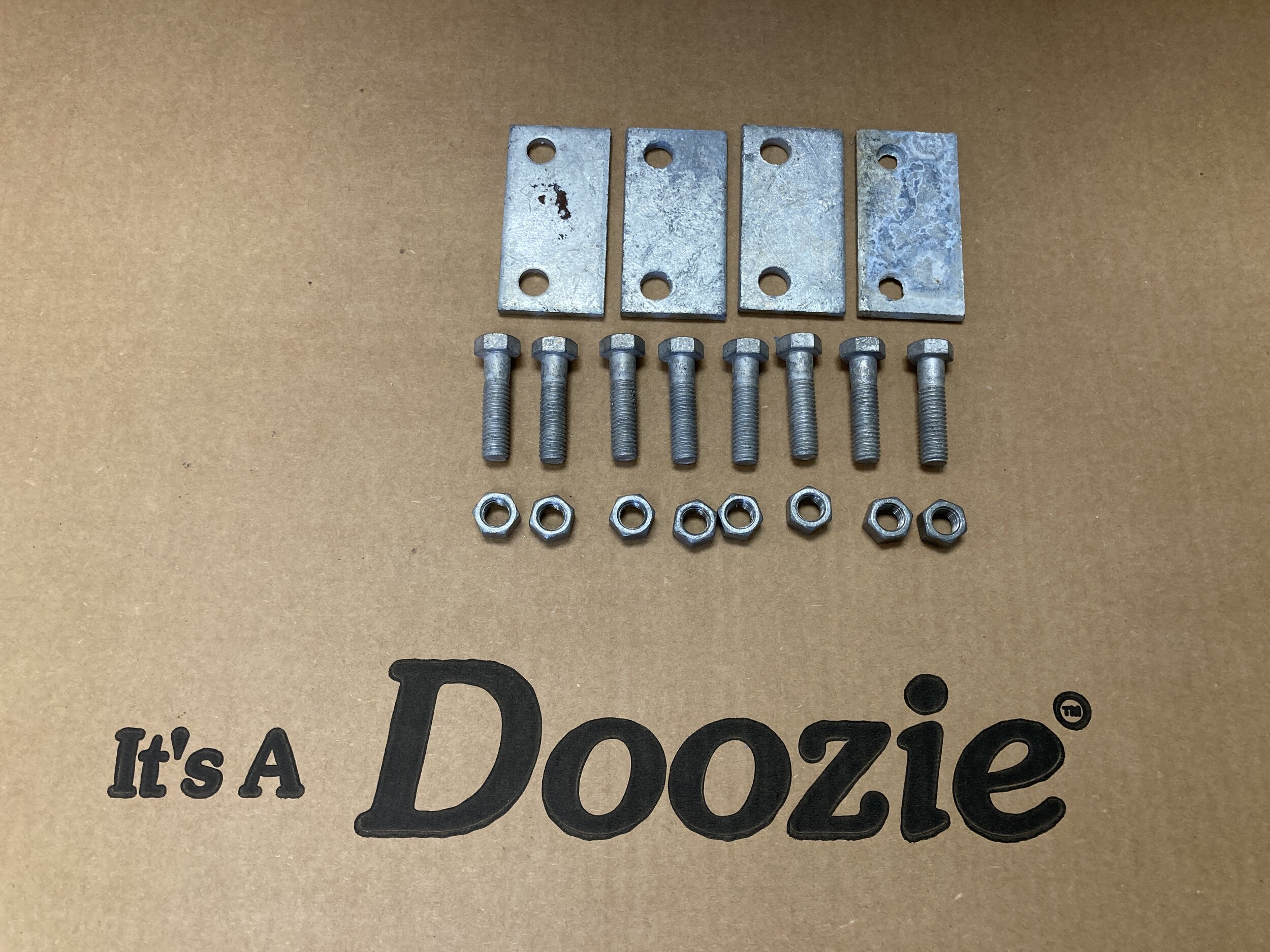

Adjustable small plate bolt bag

Comes with 4 plates, 8 bolts, and 8 nuts. These can be used for

• 4” adjustable brackets

• 6” adjustable brackets

• 10” adjustable brackets

• 17” adjustable brackets

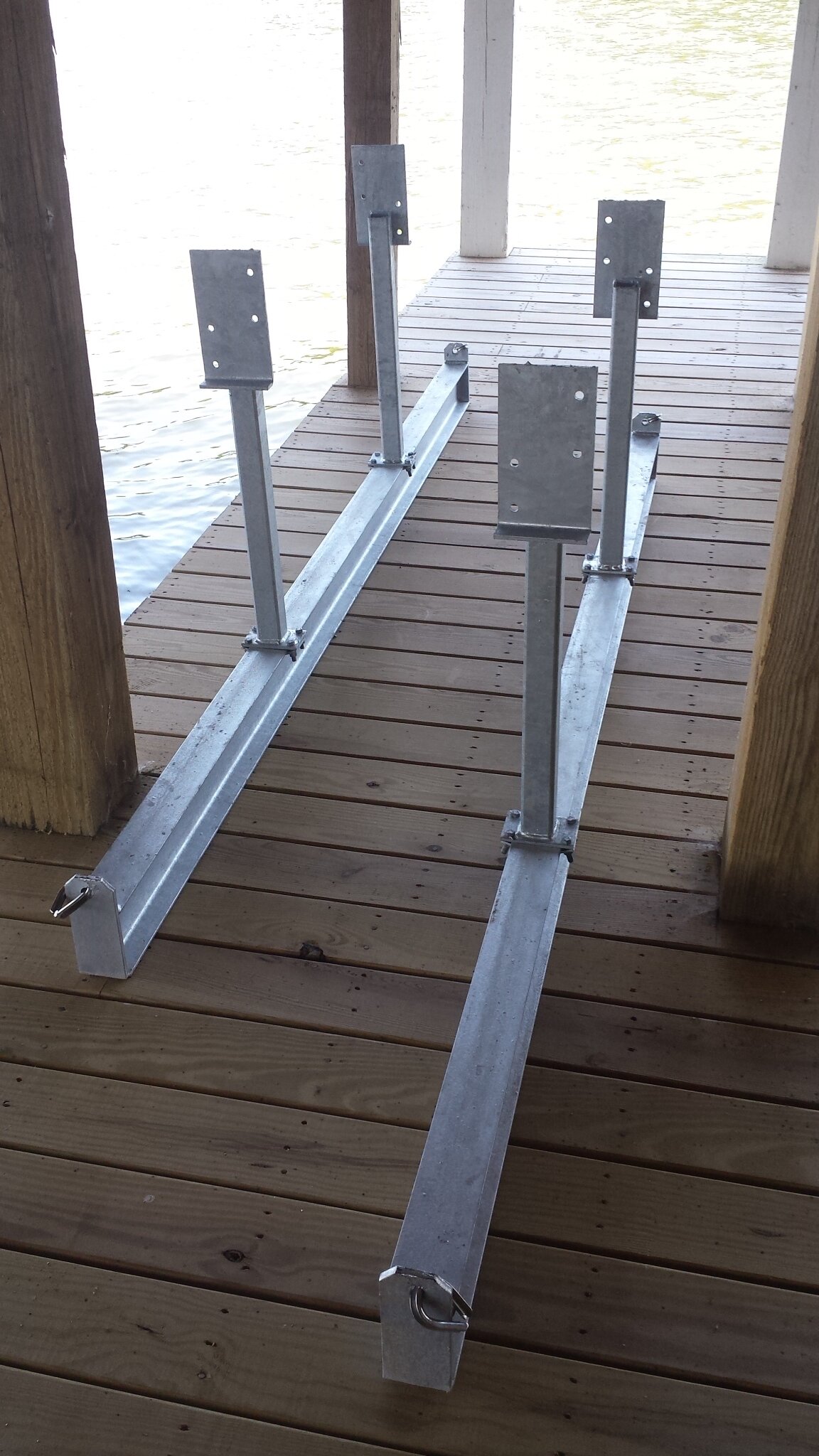

• Pontoon Floor Adapters

• 2- Tube adapters

• 3- Tube adapters

• Loading Post

Aluminum Bunks

Aluminum bunks are a great investment. They never need to be replace (unlike the standard wooden bunks) and never rust. They are sturdy, don’t bow, and have a weigh capacity of 8000. A 4” rubber pad prevents any harmful rubbing against the bottom of the boat. The bunks come in 8” x 12’ and 10” x 12’ sizes. They are often upgraded at the time of purchase along with aluminum cradles. Aluminum risers are available for boats that need more space between the hull of the boat and the cradles.

Aluminum Bunks and Cradles

An upgrade worth your investment! Upgrading to aluminum bunks and cradles will ensure that your will never need to replace your cradles or bunks due to rusting. Cradles come in 9ft and 10ft standard but can be cut to custom lengths. Bunks come in 8” x 12’ and 10” x 12’ sizes. Risers are also available. Risers allow more space between the boat and cradles.

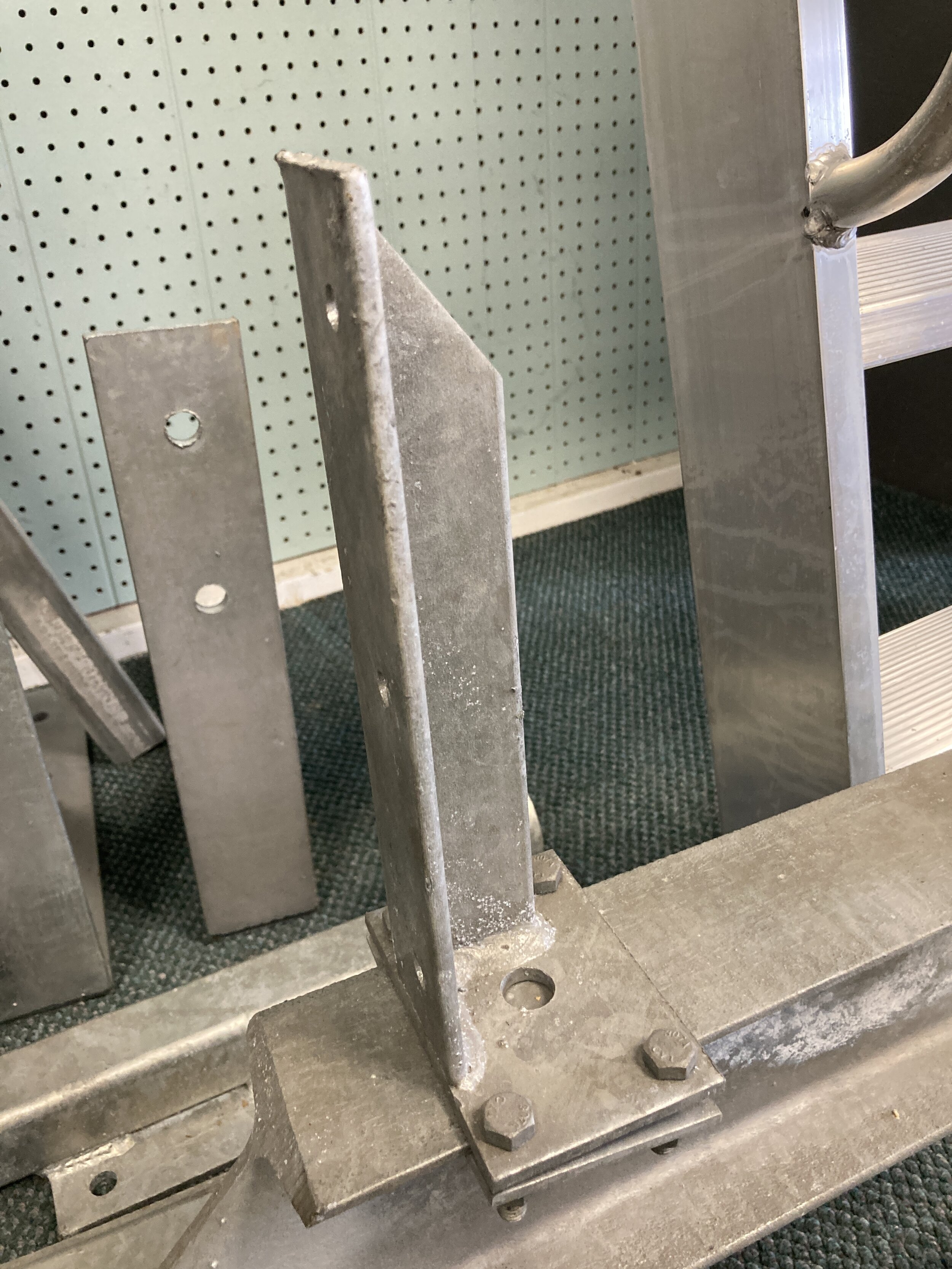

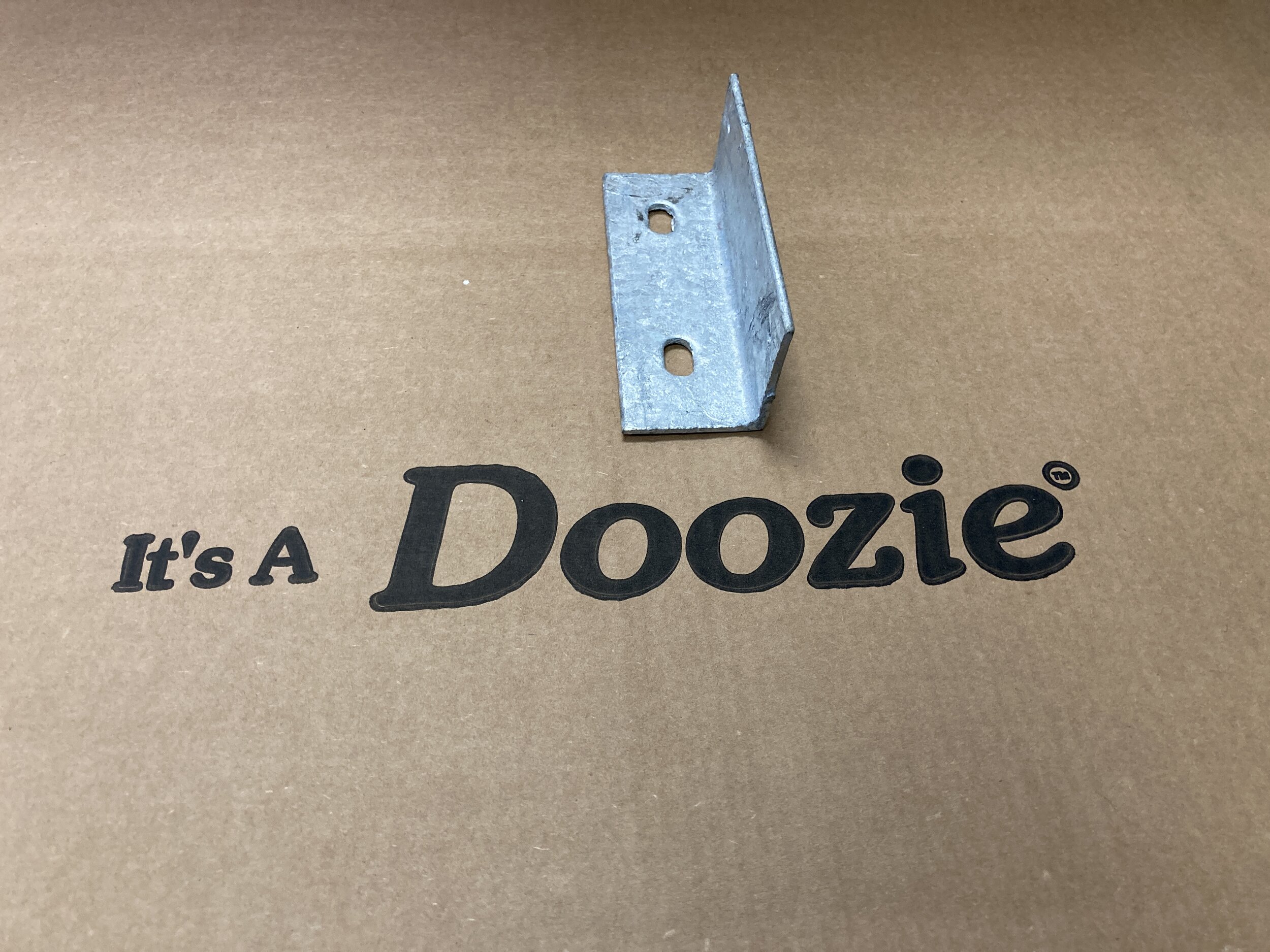

Corner Bracket (Lockdown Brackets)

Corner Brackets are used to prevent overhead beams from wiggling. They come in sets of 4.

Beam Bracket

Beam Brackets are used on docks that don’t have the hight to support an overhead beam. They come in sets of 4. These brackets need to have lots of wood support. Bolts not included. (Due to wood thickness being different dock to dock bolts are sold separately)

Belts

Belts come in

• 28”: Jest ski

• 36”: 3,000lb and 4,000lb boat lifts with 10inch pulleys

• 40”: 6,000lb or more boat lifts with 12 inch pulleys

The wall model shows a 10 inch pulley with a 36” belt

These belts are made for boat lifts and have special teeth to carry the load of your boat

AX numbers will be two numbers lower the belt size

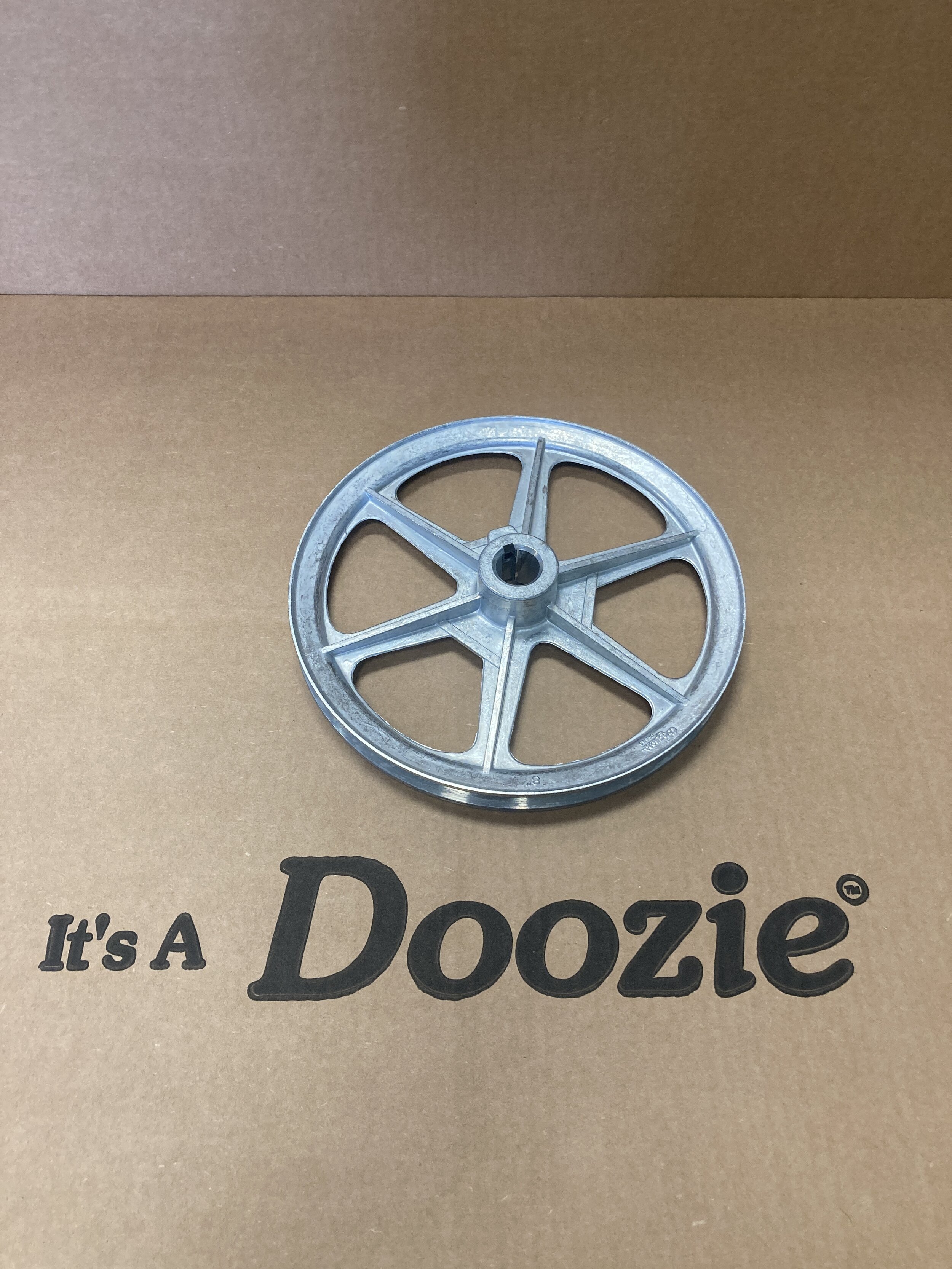

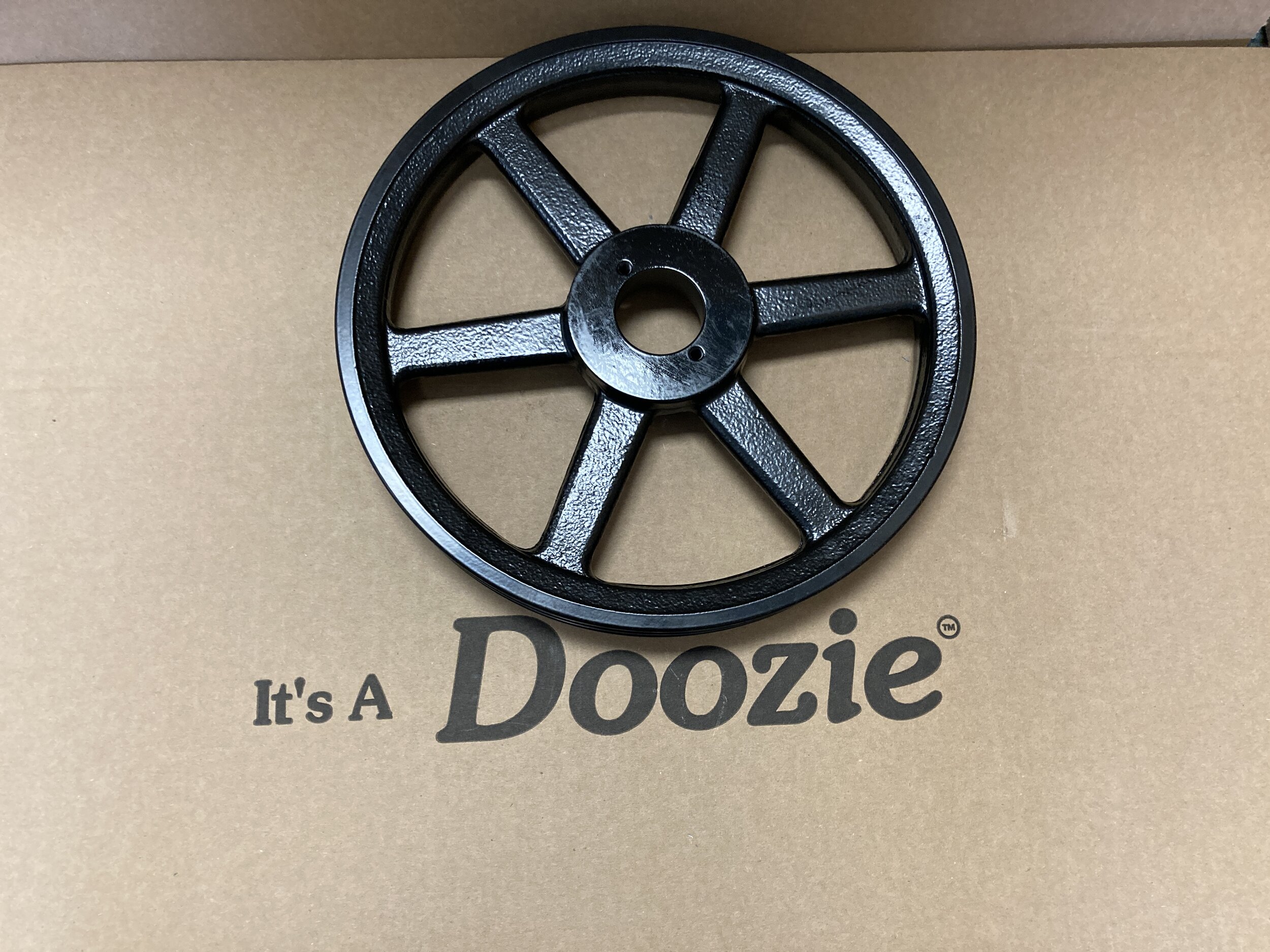

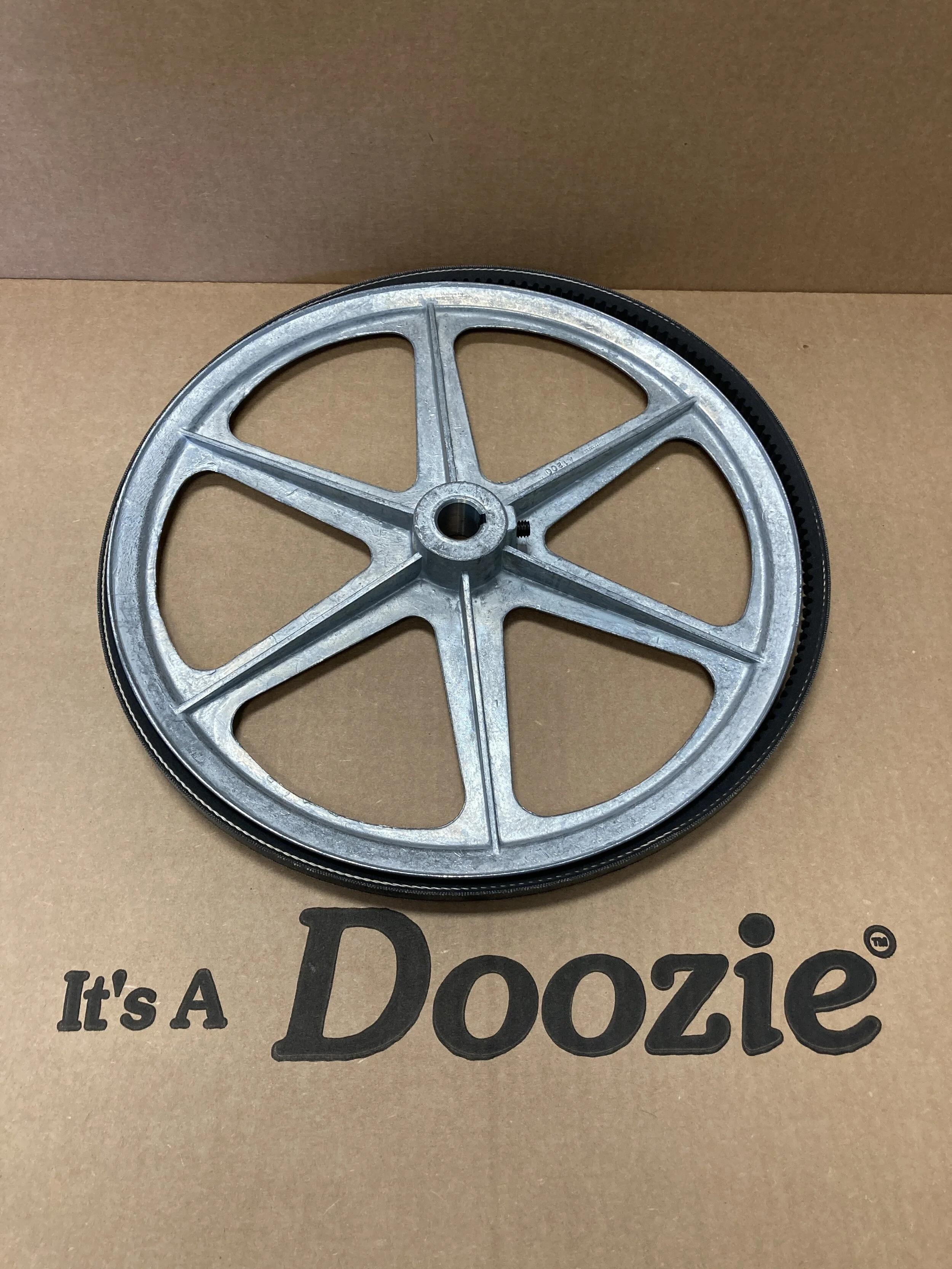

Belt Pulley

• 8 inch (Jet ski lift with a 28” belt)

• 10 inch (3000lb and 4000lb lifts with a 36” belt)

• 11 inch with double groves (8000 single motor lift). Needs two belts (belts are 39”)

• 12 inch (6000lb+ lifts with a 40” belt)

• Belt not included. The wall model shows a 10 inch pulley with a 36” belt

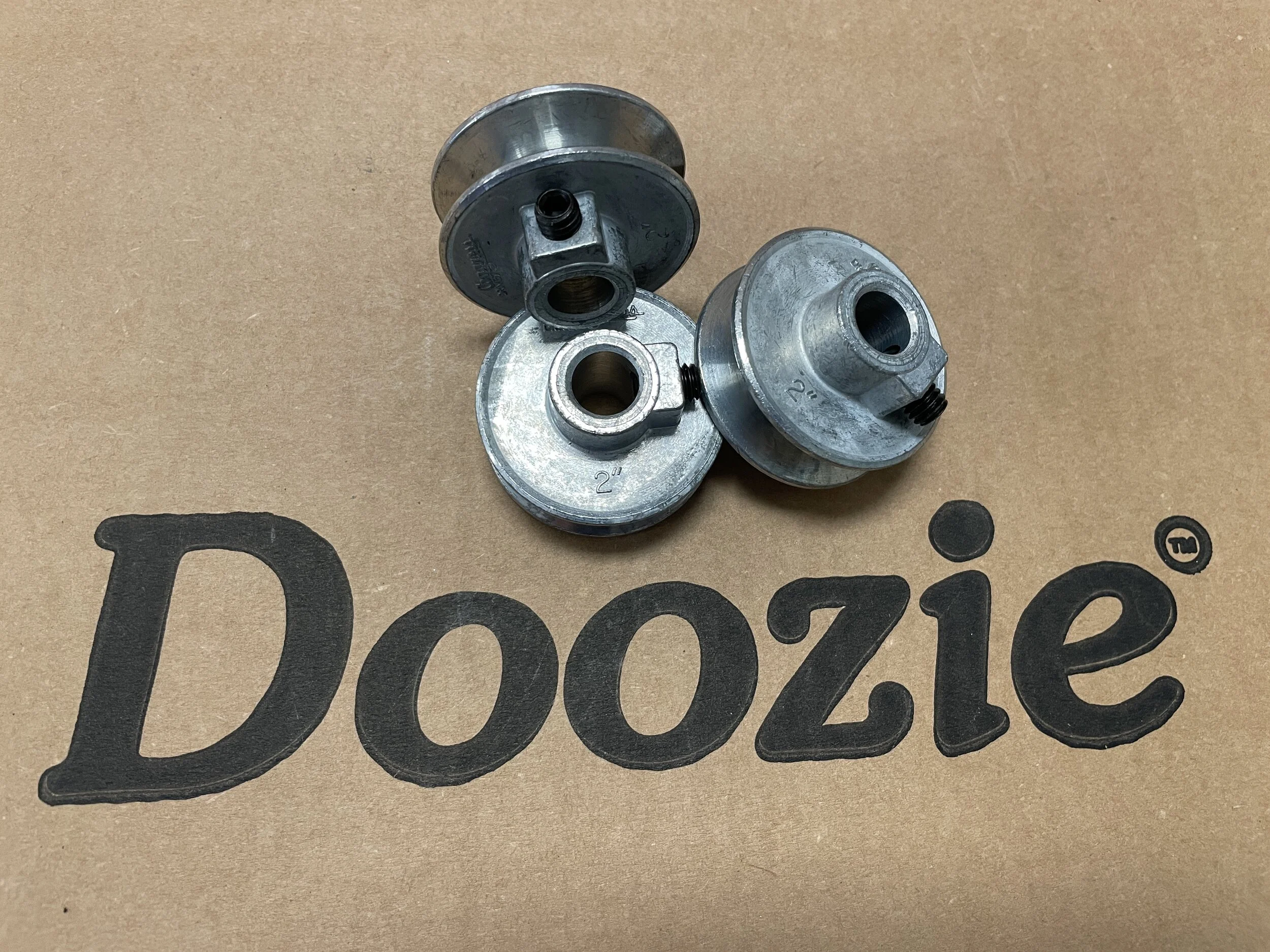

2” Motor Pulley

We have two different motor pulleys. One is for deluxe, overhead, and 4 post lifts and the other one is for jet ski lifts. The 2” motor pulley that has a key hole is for the deluxe, overhead, and 4-post lifts. These lifts come with a motor key to secure the pulley to the motor shaft. The jet ski lifts do not have a motor key and therefore use the 2” pulleys shown in the third and fourth pictures.

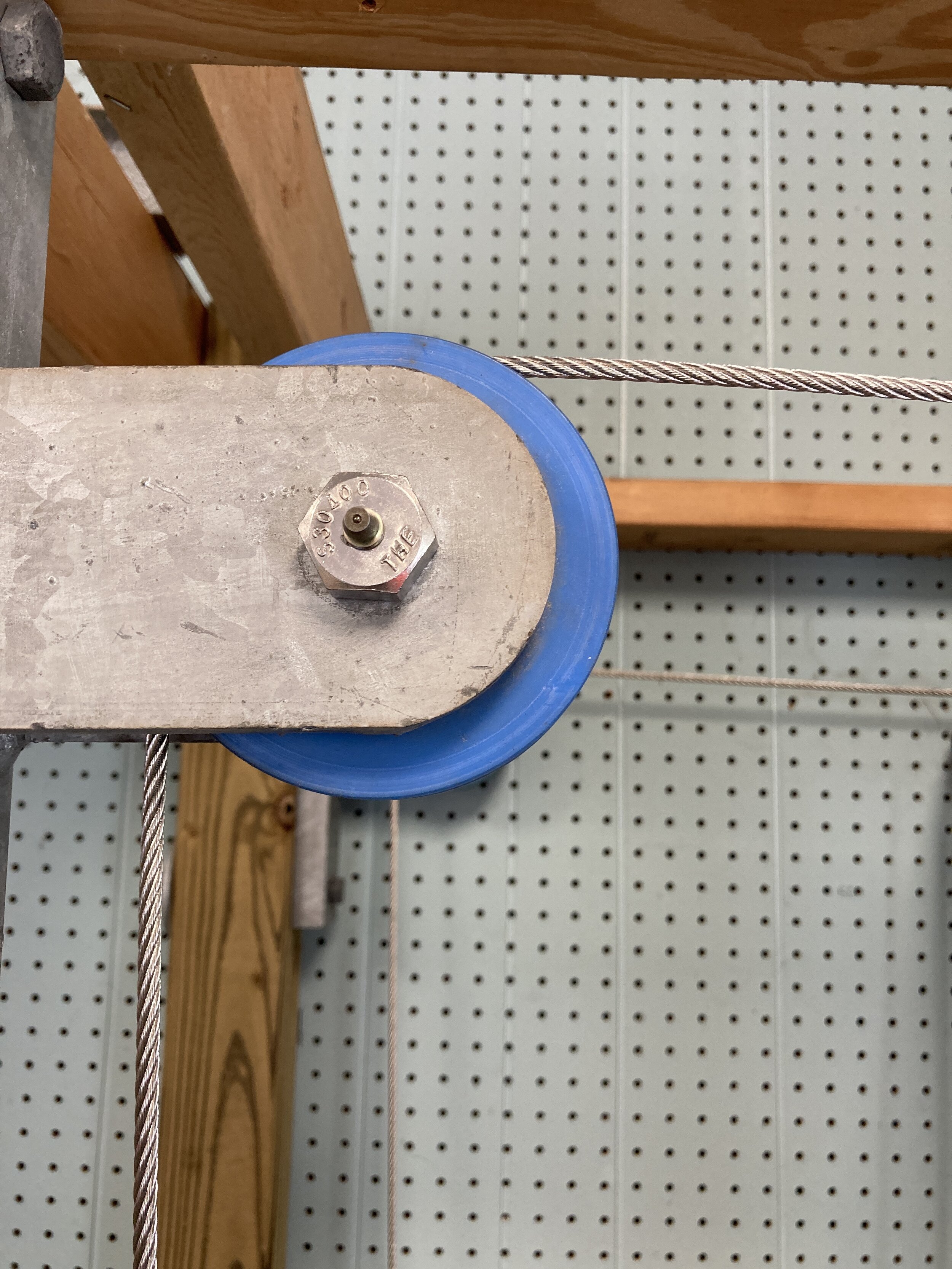

Blue Pulley

This blue pulley supports the cable for your boat lift. This comes as one blue pulley without nuts or shafts. The pulley is 4 inches in diameter. Nuts and shafts sold separately. This can be sold as a complete set which includes the hanger, pulley, nut, and shaft: See Pulley Hanger Complete on this page for more details.

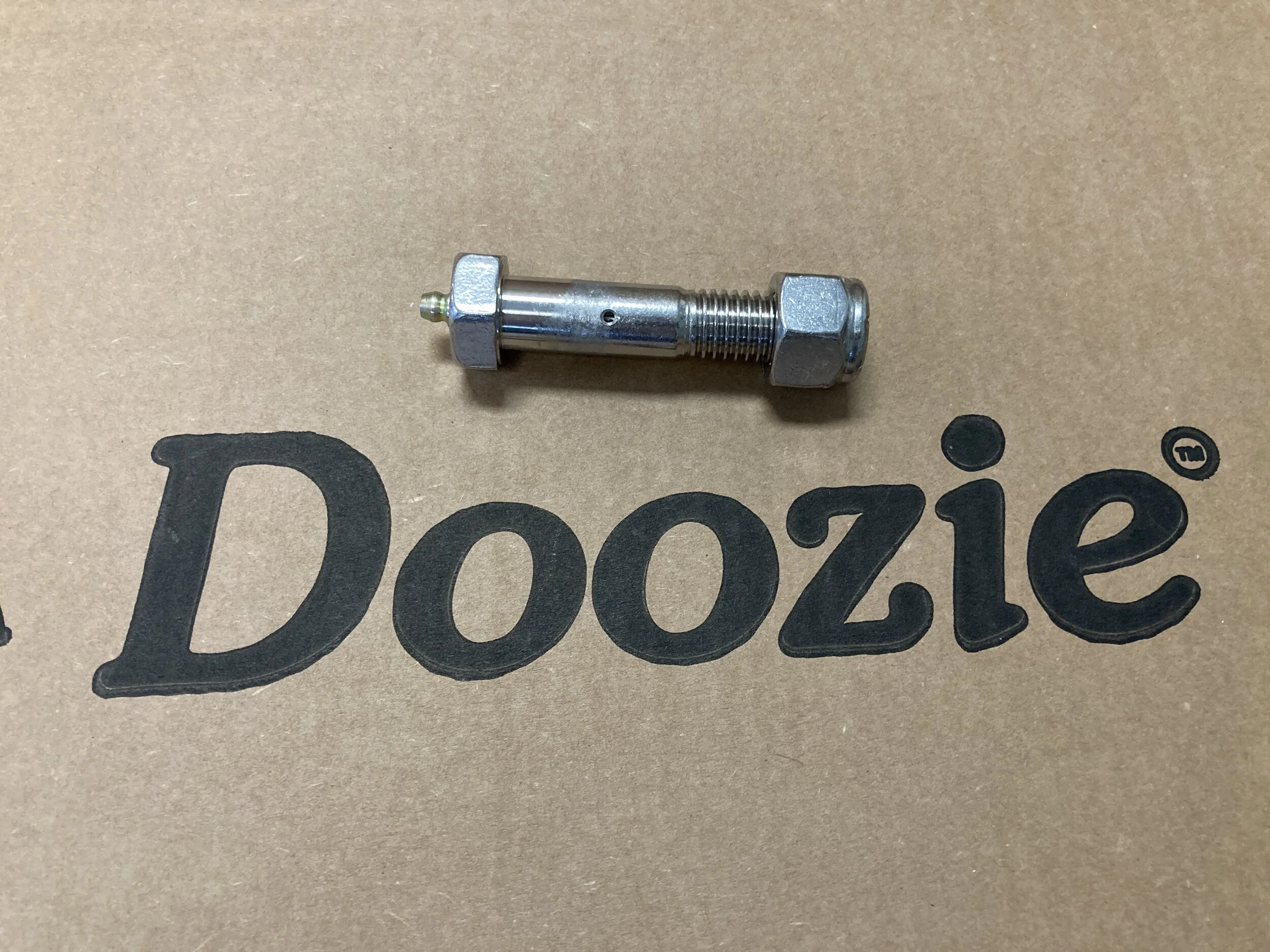

Blue Pulley Shaft and Nuts

The pulley shaft and nuts go through the blue pulley and secure it to the hanger. Pulley not included. Note there is a grease fitting on the shaft. This needs to be greased yearly along with the three grease fittings around the gear.

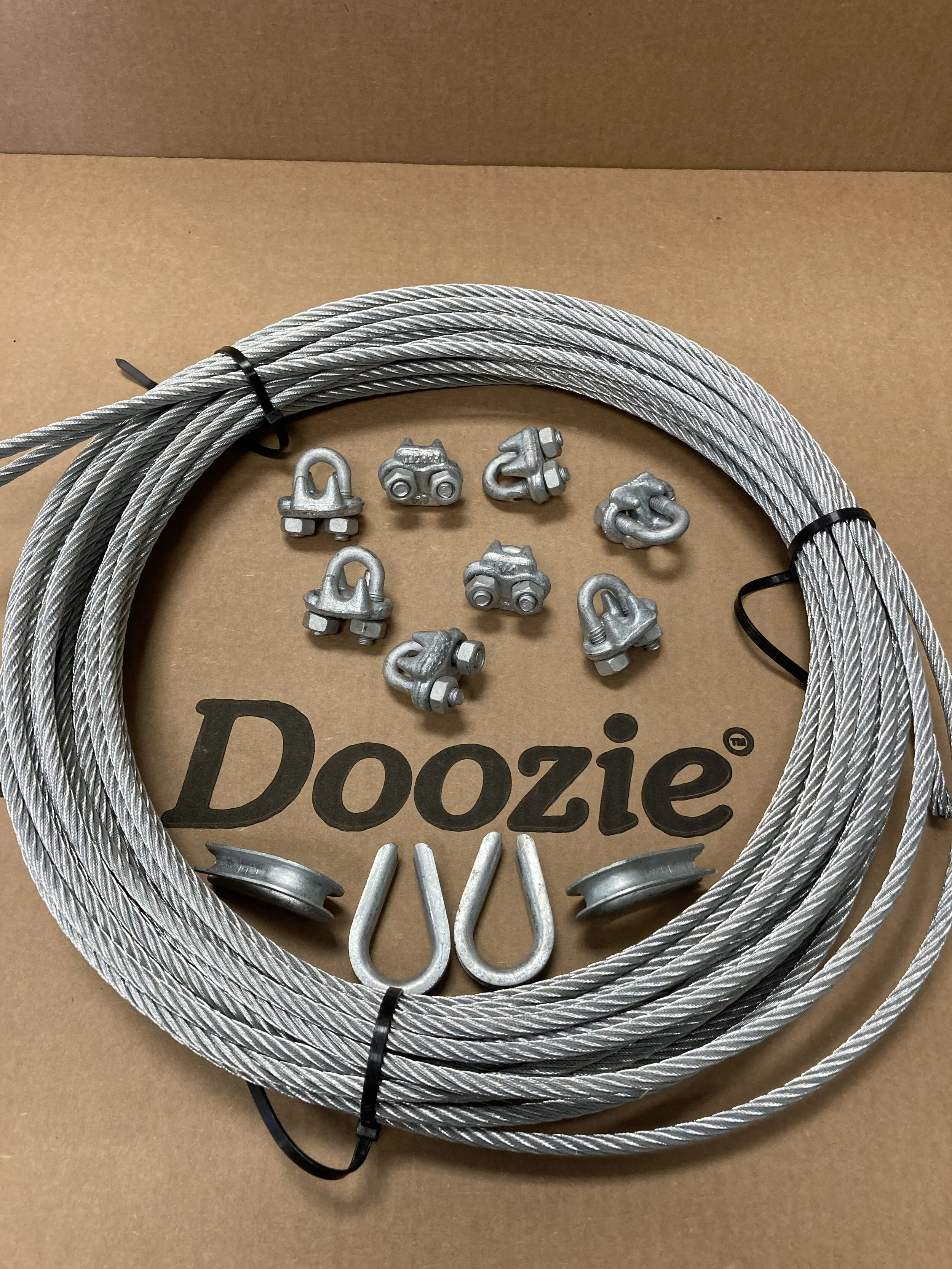

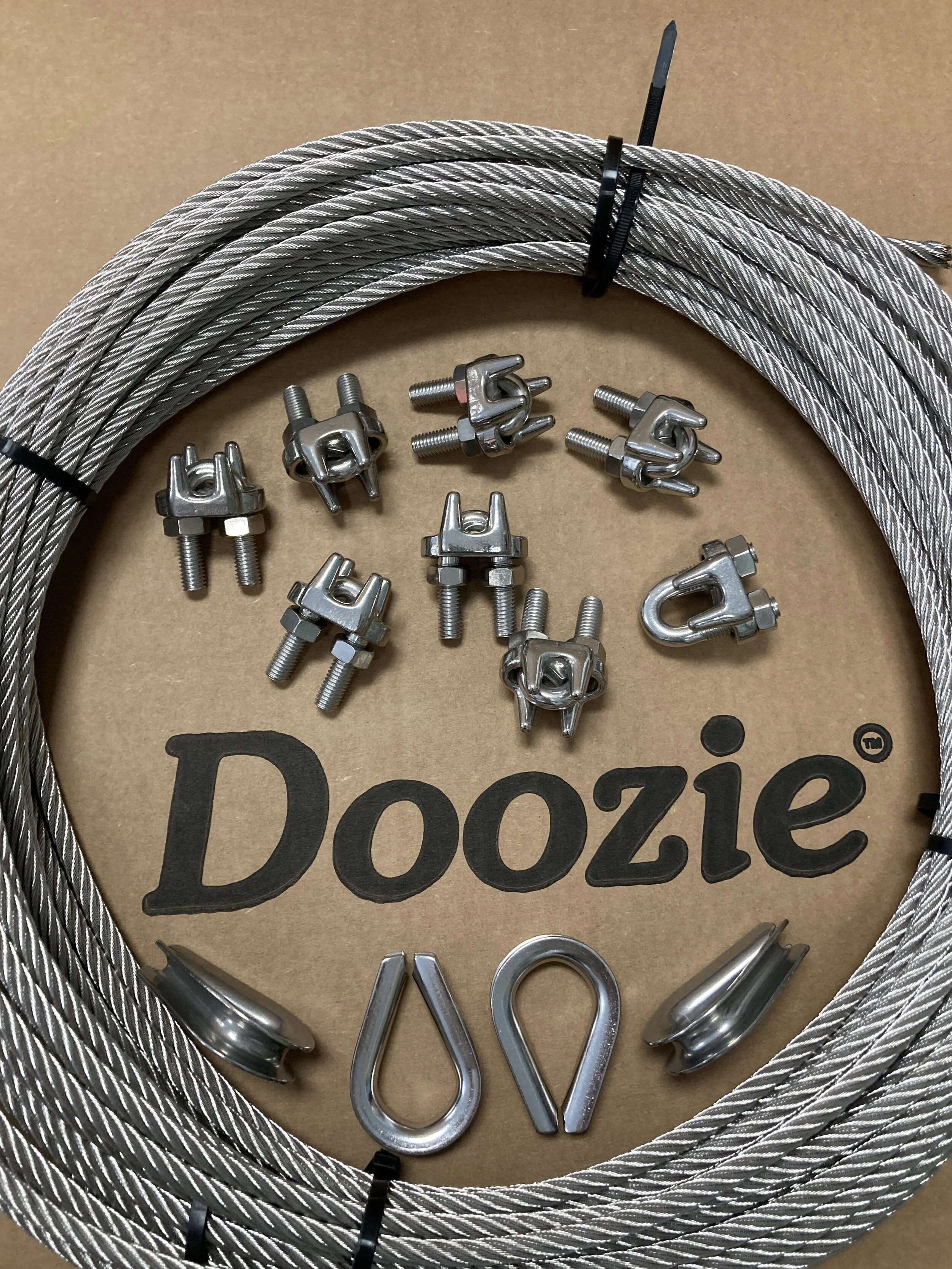

Cables Sets- Galvanized

Replacement cables for your lift. Standard set has two 40 foot cables. We custom cut our cables so you can get longer cables if needed. Extra clamps can be purchased separately. Extra thimbles can be purchased separately. These cables are aircraft grade. Cables come in four sizes.

• 3/16” (only for 3,000lb lifts)

• 1/4” (4,000lb lifts. Shown in picture)

• 5/16” (6,000lb and 8,000lb lifts)

• 3/8” (only for 10,000lb lifts)

Cable sets include:

• 8 clamps

• 4 thimbles

• 2 40-foot cables

Note: This cable is for fresh water only and will need to be replaces about every 5 years. Only use aircraft grade cables on the lifts. Anything else will NOT wind or rewind properly.

Cables Sets- Stainless Steel

Replacement cables for your lift. Standard set has two 40 foot cables. This cable is standard on all lifts. We custom cut our cables so you can get longer cables if needed like in tidal areas. Extra clamps can be purchased separately. Extra thimbles can be purchased separately. These cables are aircraft grade. Cables come in four sizes.

• 3/16” (only for 3,000lb lifts)

• 1/4” (4,000lb lifts. Shown in picture)

• 5/16” (6,000lb and 8,000lb lifts)

• 3/8” (only for 10,000lb lifts)

Cable sets include:

• 8 clamps

• 4 thimbles

• 2 40-foot cables

Note: Only use aircraft grade cables on the lifts. Anything else will NOT wind or rewind properly.

Replace about every 7 years

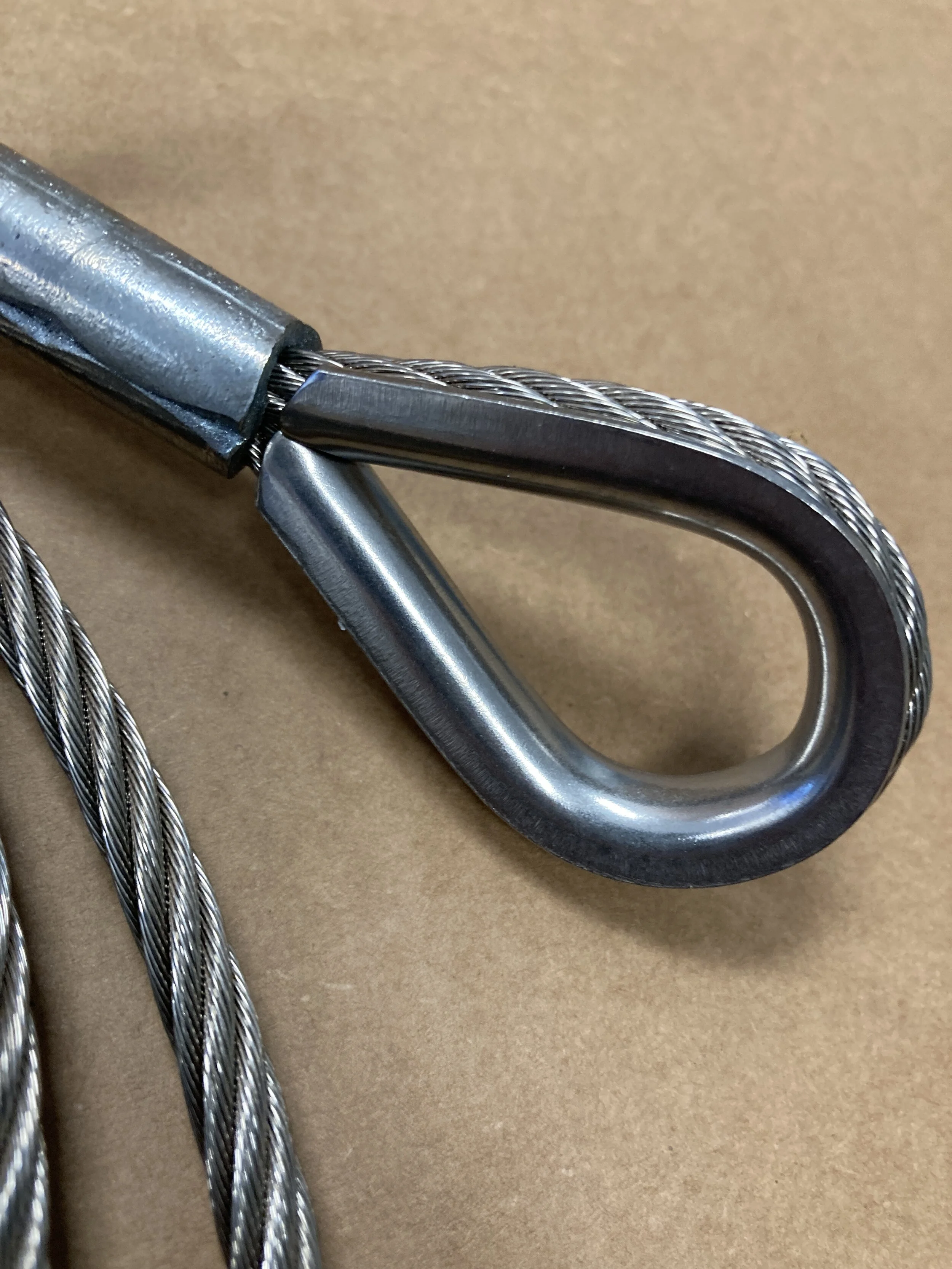

Cables - Jet Ski Lifts

This 16 foot jet ski replacement cables is for both the stand and piling jet ski lifts. It is made from aircraft grade stainless steel.

Note: Only use aircraft grade cables on the lifts. Anything else will NOT wind or rewind properly.

Replace about every 7 years

Capacitor

A capacitor gives a spark to the motor. The capacitor is the same for all our lifts. Check out this video to learn more about capacitors and how to check to see if they are working.

Caps

Pipe Cap 2”

Channel Cap

Ladder Cap 1”x4”

Jet Ski & Bumper Cap 2”x4”

Center Mount Overhead Beam

Our center mount lift has welded places for the blue pulleys. The pipe that turns the lift runs in the center. These overhead beams come 12 and 13 feet standard, however, we can make them to your measurements.

Cradle

Comes in 8, 9, 10, or custom feet. Sold as a pair. They are made out of steel and are 4, 5, or 6” tall. The adjustable brackets and tri/pontoon adapters mount easily to the beam.

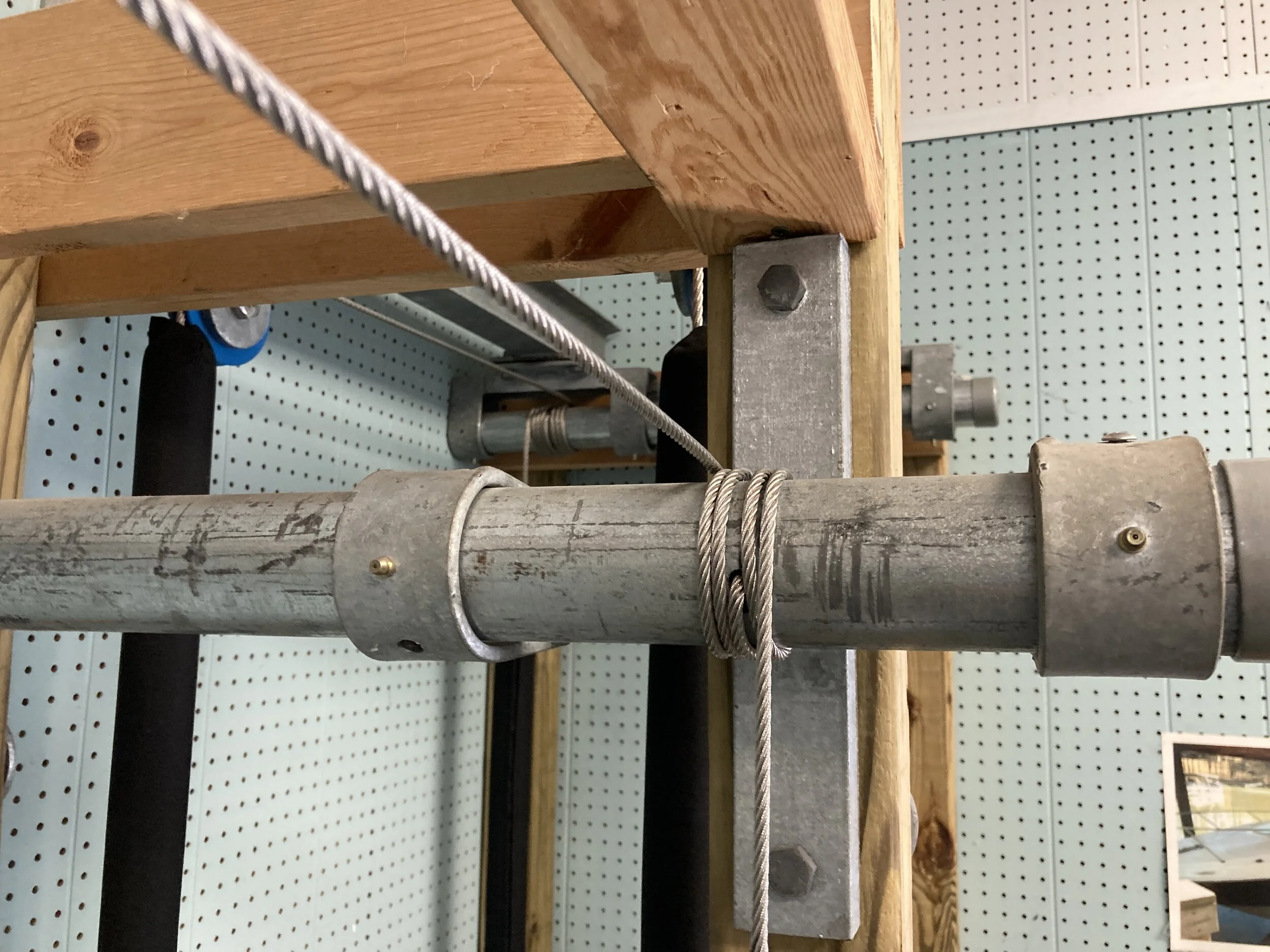

Deluxe Pipe Hanger

This is the pipe hanger for the deluxe model. It does not come with bolts and nuts but those can be bought separate. They are sold separate due to the fact wood thickness differs between docks.

Drive Cover Bolt Package

The is the complete bolt package for the drive cover

• 1- Instruction Sheet

• 1- Plate

• 2- 1/2” x 1 1/2” Bolts

• 2- 1/2” Nuts

• 2- Drive Cover Washer

• 1- Misc.bag (2 “small” bolts and nuts, 2 “medium” bolts and wing nuts)

Drop Cradle

The drop cradle allows for boat with long fins to safely clear the cradle without touching it. It adds 4”, 5”, or 6” extra space.

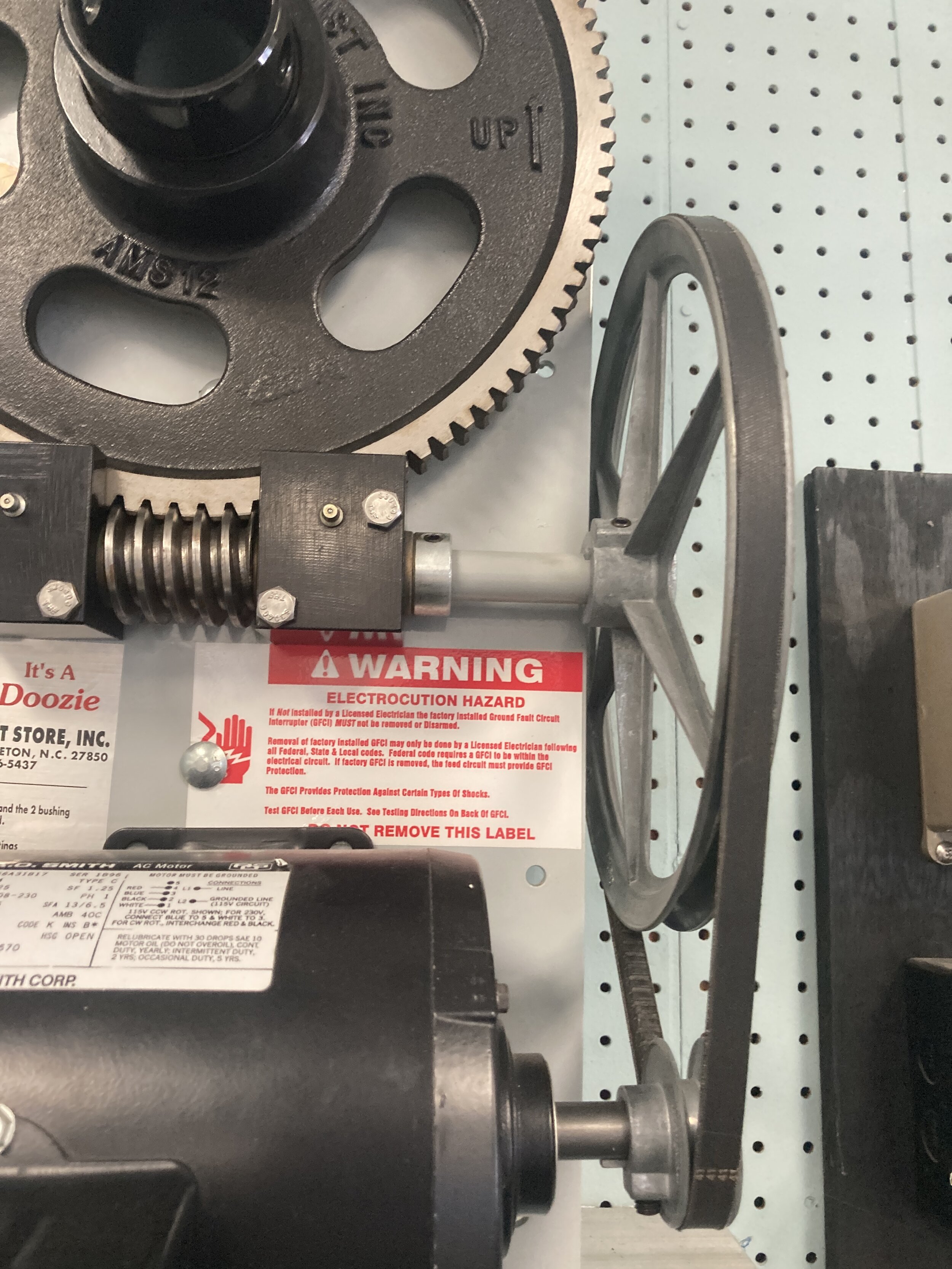

Gear Drive

• 4,000lb (1hp motor)

• 6,000lb (1hp Heavy Duty motor)

• 8,000lb+ (1.5hp motor)

The gear plate can be purchased without the motor (see gear plate)

Motor, switch, GFI, belt, pulley belt, and 2” pulley included

There are three grease points on the gear drive. One on the 12” worm gear and one on each guide block. These need to be grease yearly.

Note: The gear plate for a 4000, 6000, and 8000 look the same but have different tensile strength. A 4000 gear plate is not strong enough to pick up a 6000 pound boat.

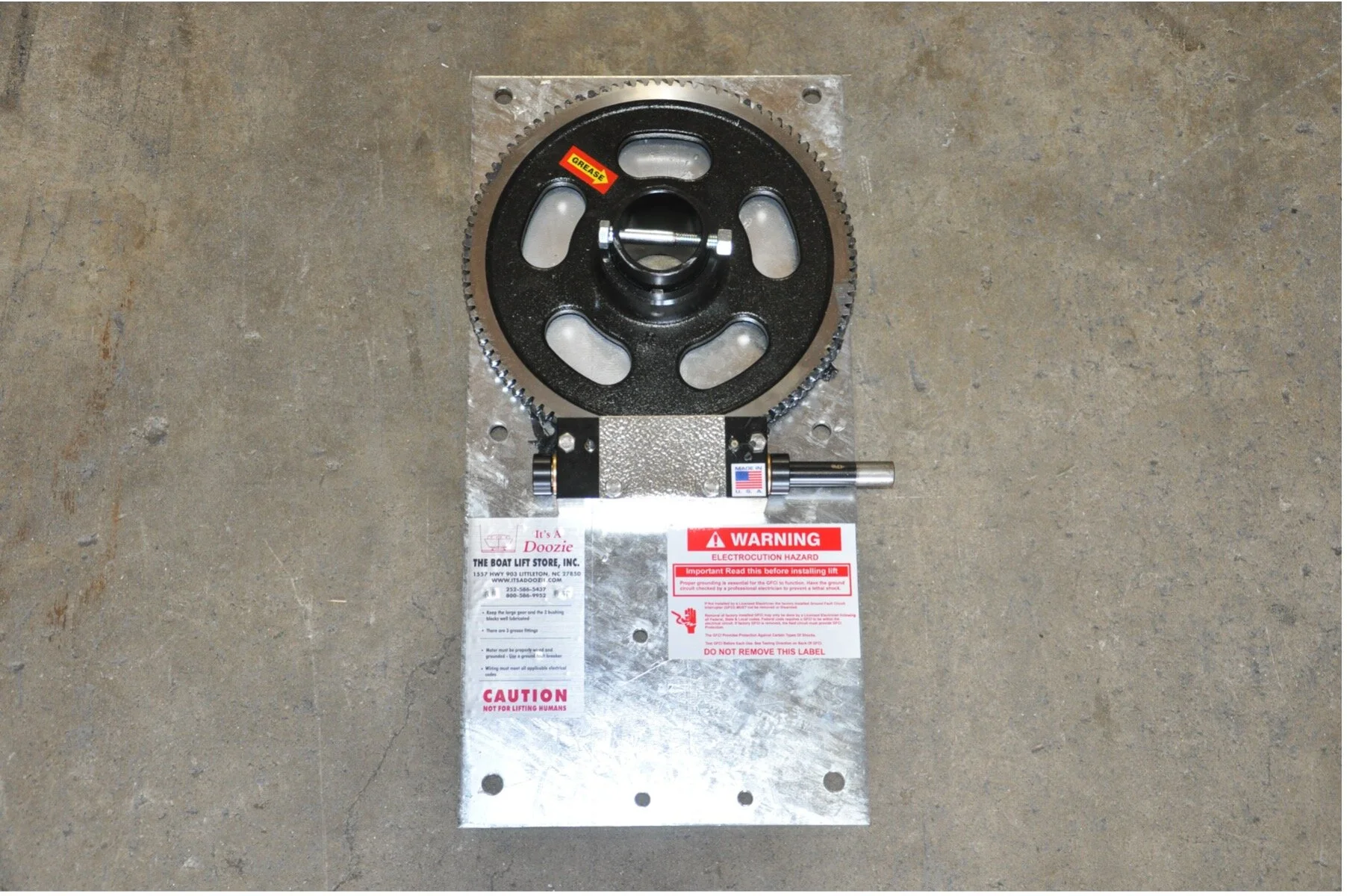

Gear Plate

The gear plate comes in three different tensile strength

• 4,000lb

• 6,000lb

• 8,000lb+

The gear plate does NOT included motor, switch, GFI, belt, pulley belt, and 2” pulley. It is just the plate and 12” worm gear with the pulley shaft.

There are three grease points on the gear drive. One on the 12” worm gear and one on each guide block. These need to be grease yearly.

Note: The gear plate for a 4000, 6000, and 8000 look the same but have different tensile strength. A 4000 gear plate is not strong enough to pick up a 6000 pound boat.

Enclosed Gear

The future

The enclosed gear features diecast aluminum housing with marine-grade paint, and stainless steel motor and hardware. It is quickly becoming one of our most popular products. It is no grease, no maintenance, just lower your boat and have fun!

Grease Fitting

3/16 push-in grease fitting.

There are 3 grease fittings on your gear plate. There are also grease fittings on the contact points of the pipe hangers and blue pulleys. Grease your lift YEARLY!

Lock and Pin

This lock and pin is part of your jet ski stand or piling lift. It will hold your jet ski to the track and release the weight on the cable.

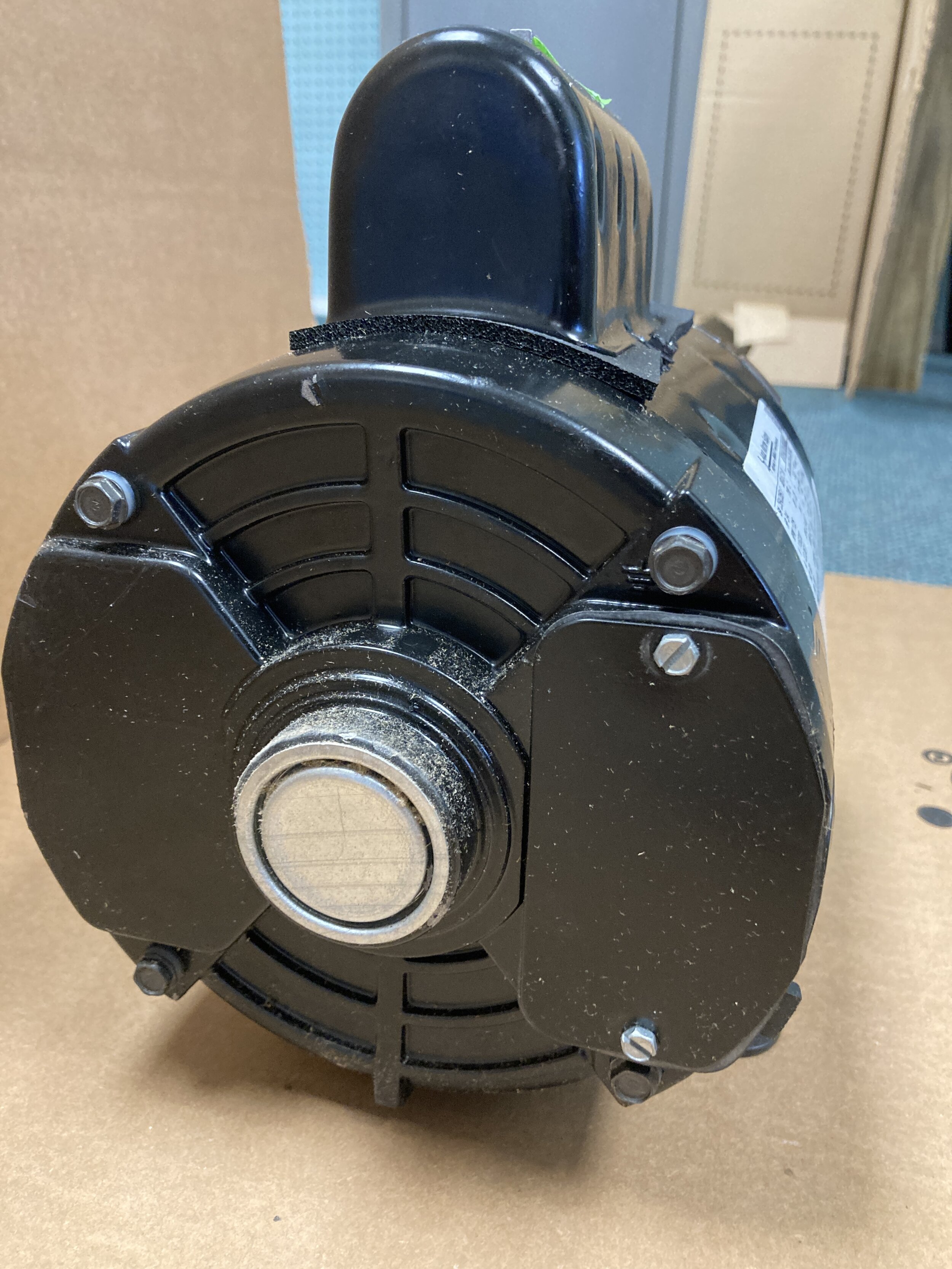

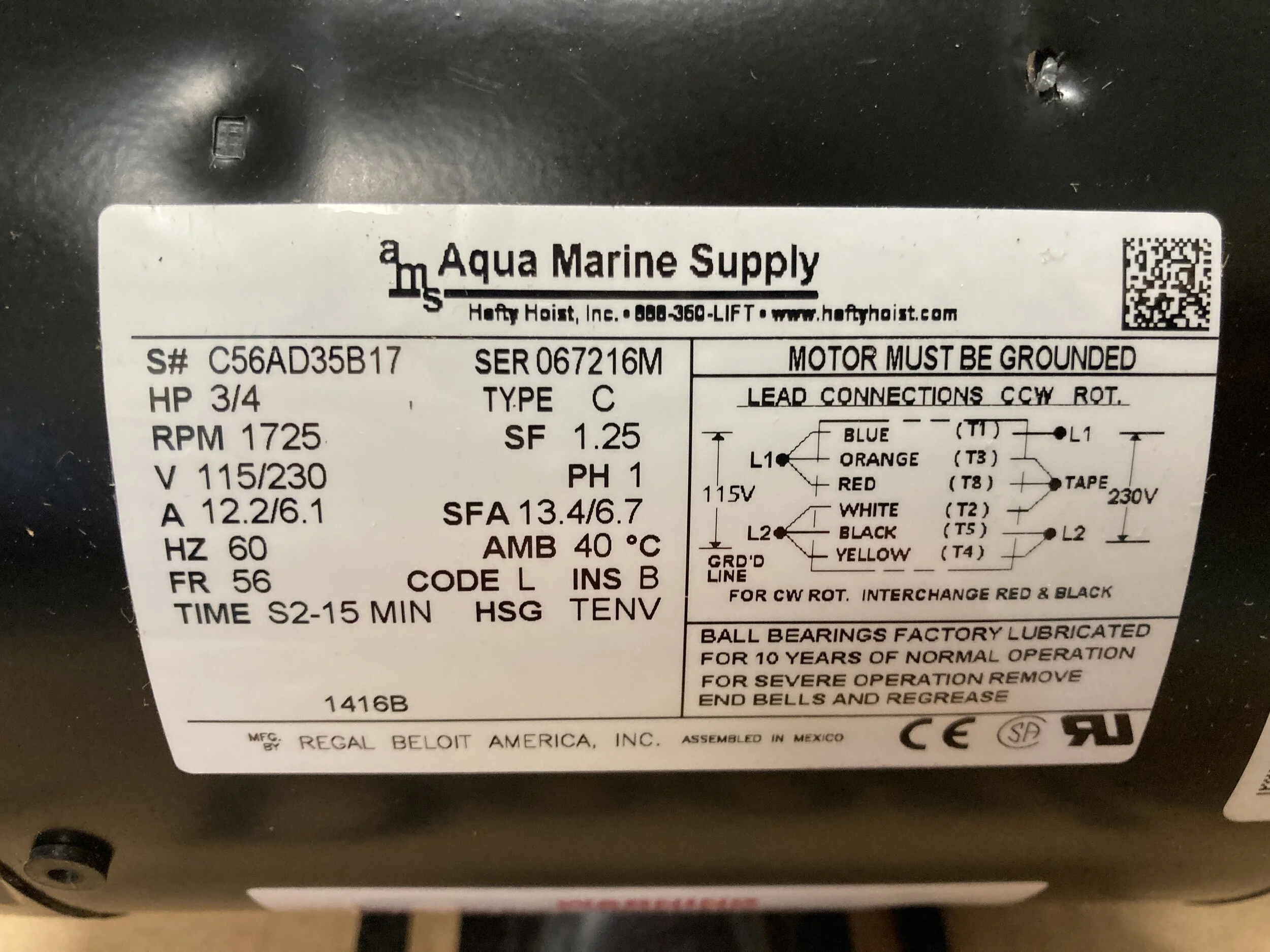

Replacement Motor

• 3/4 Hp (shown in picture)

• 1 Hp

• 1 Hp Heavy duty

• 1.5 Hp

Motor Bracket

This is an optional piece for deluxe lifts. It attaches to the bottom of the gear plate and the near by piling to keep the gear plate square. However, it is not needed as the gear works best free hanging.

Motor Key

This part goes between the motor shaft and the 2” motor pulley

Motor, Switch and GFI

This is a motor, switch, and GFI kit. Replacement motor come in 3/4 hp, 1hp, 1 hp heavy duty, and 1.5 hp. All switches are standard and GFI come in 110V or 220V.

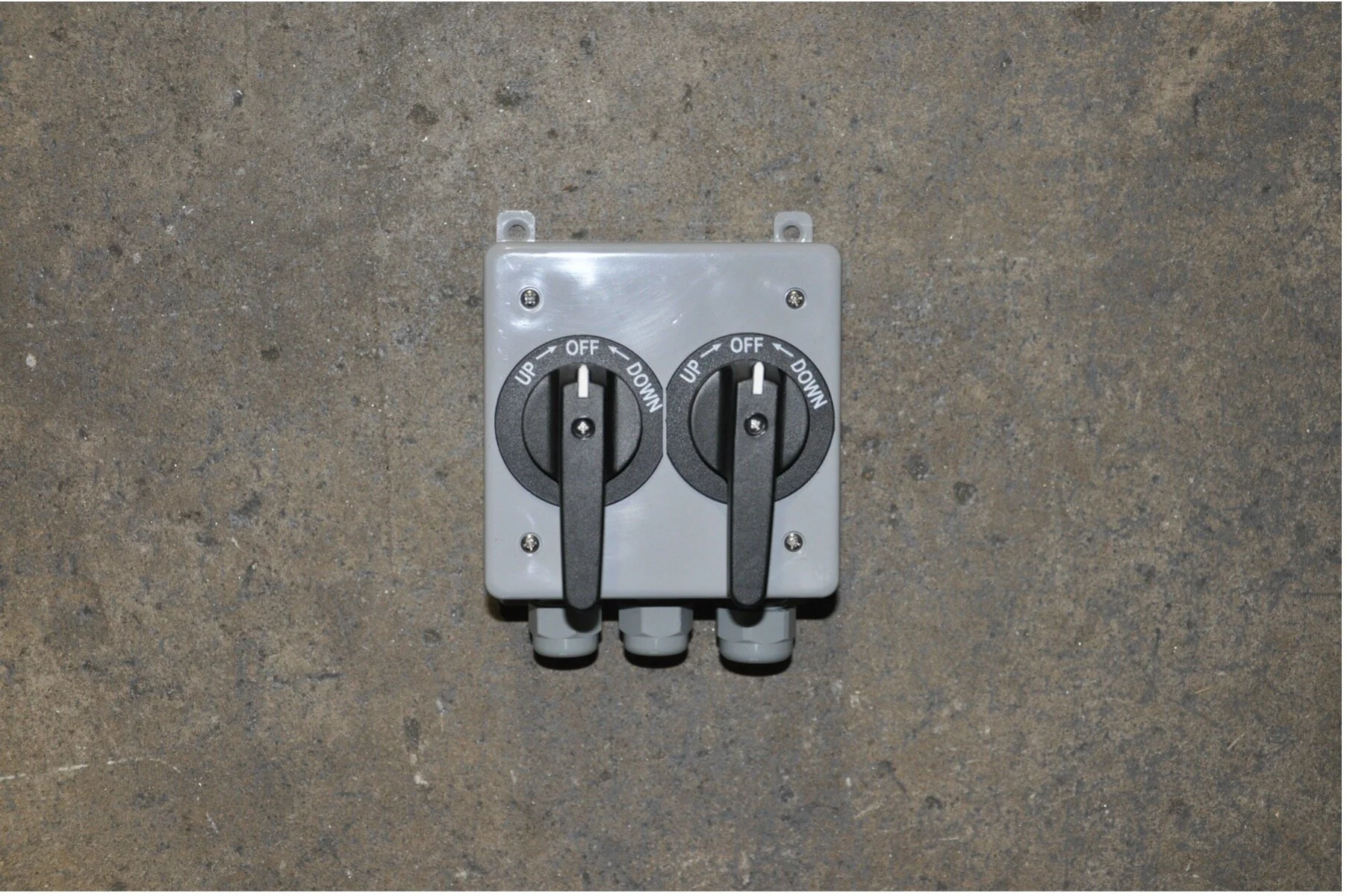

double motor switch box

This is a replacement switch box for a double motor lift. Double motor lifts have two switch drums. The switch box comes with two switch drums, two handles, and a box.

single motor switch box

This is a replacement switch box for a single motor lifts. It comes with a new switch drum, handle, and box.

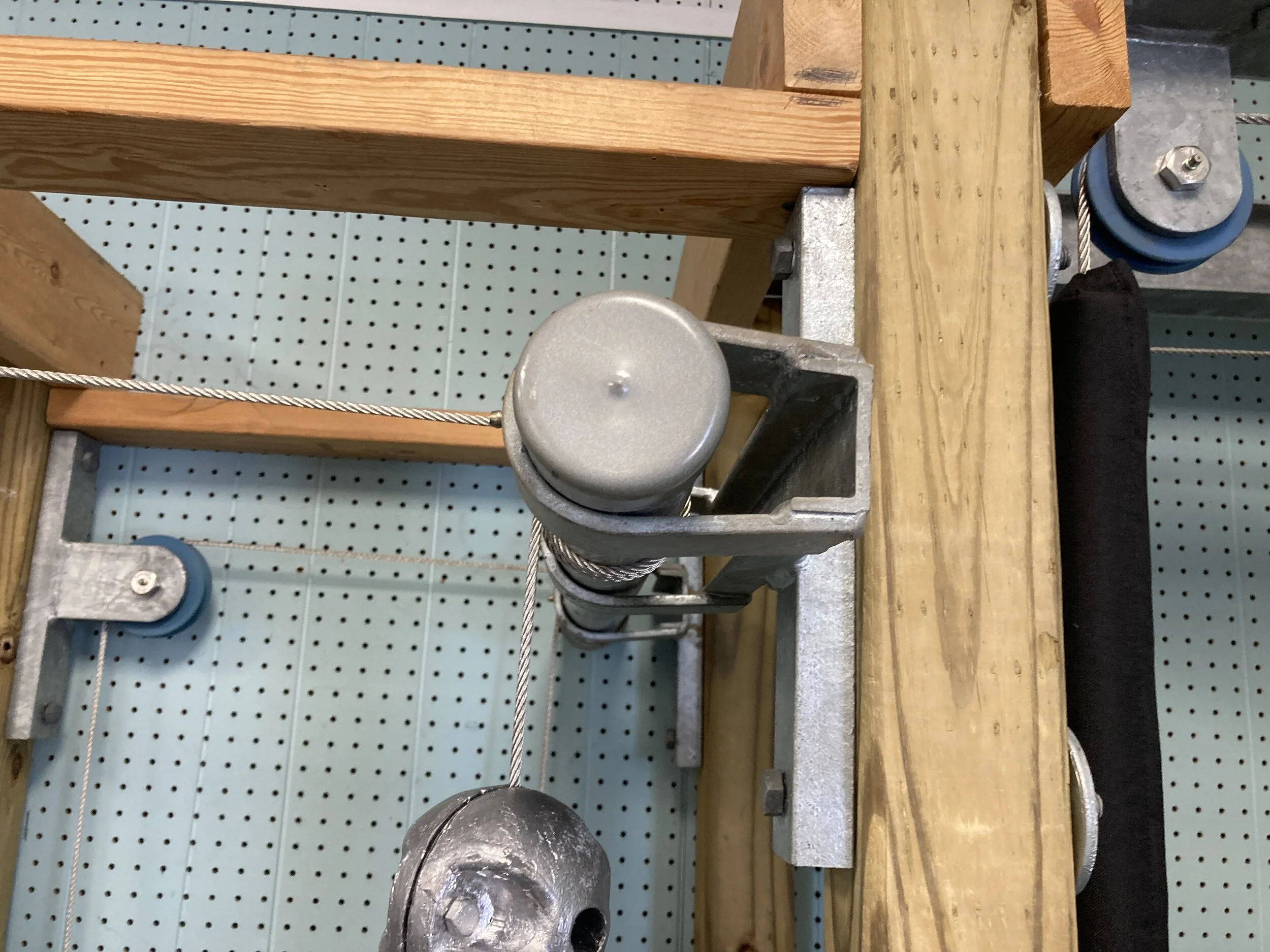

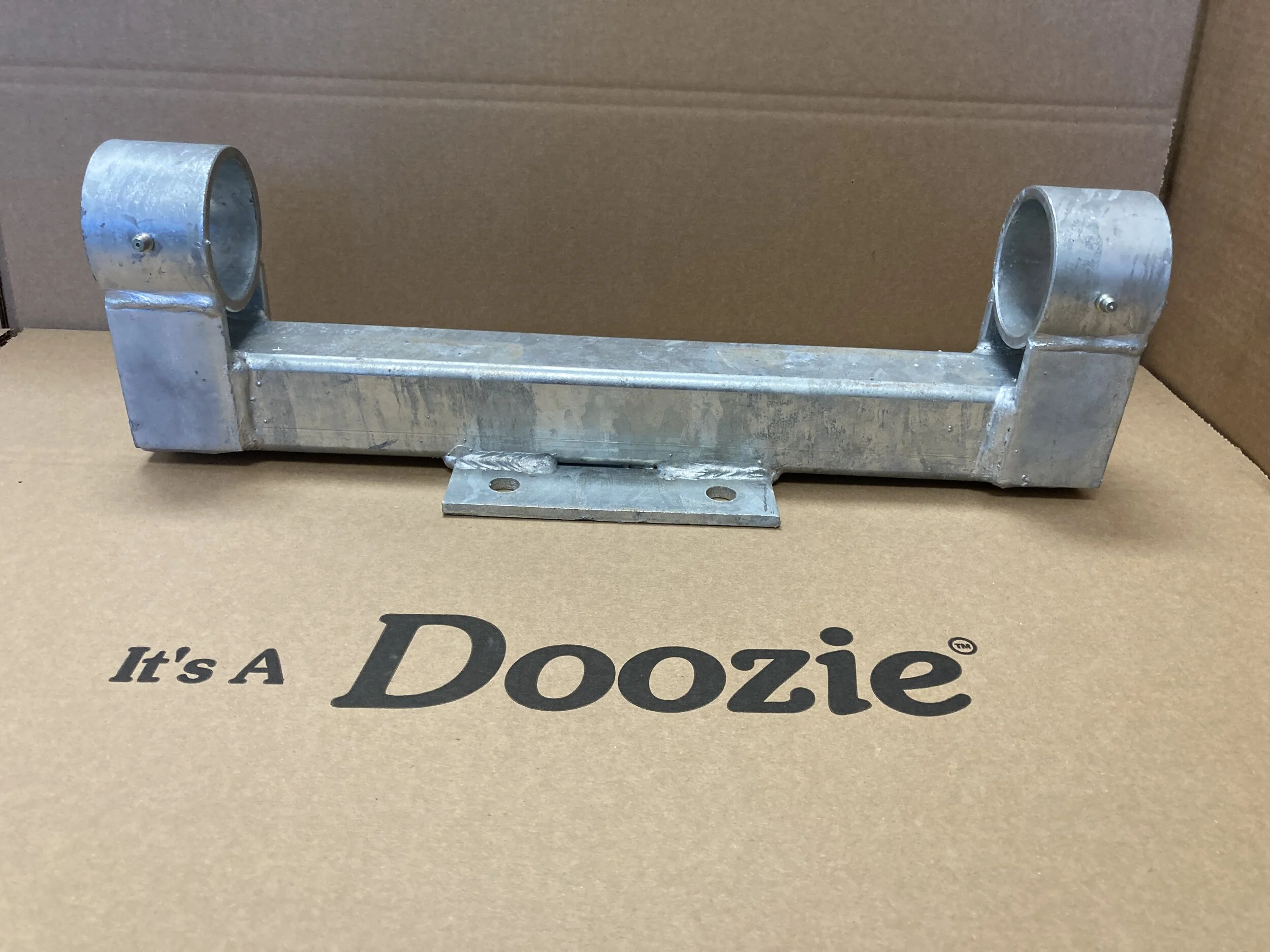

Overhead Pipe Hanger

The overhead pipe hanger attaches to the overhead beams on the side and center mount lifts. They have two grease fittings on the them.

Overhead Pipe hanger with motor mount

Our overhead pipe hanger with motor mount attached to the upper part of the gear plate.

Overhead Side mount beam

The overhead side mount comes in 12ft for 9ft cradles and 13ft for 10 cradles. There are two plates on the beam. One is for the blue pulley attachment and the other for the pipe hanger. We can custom make your overhead beam on request.

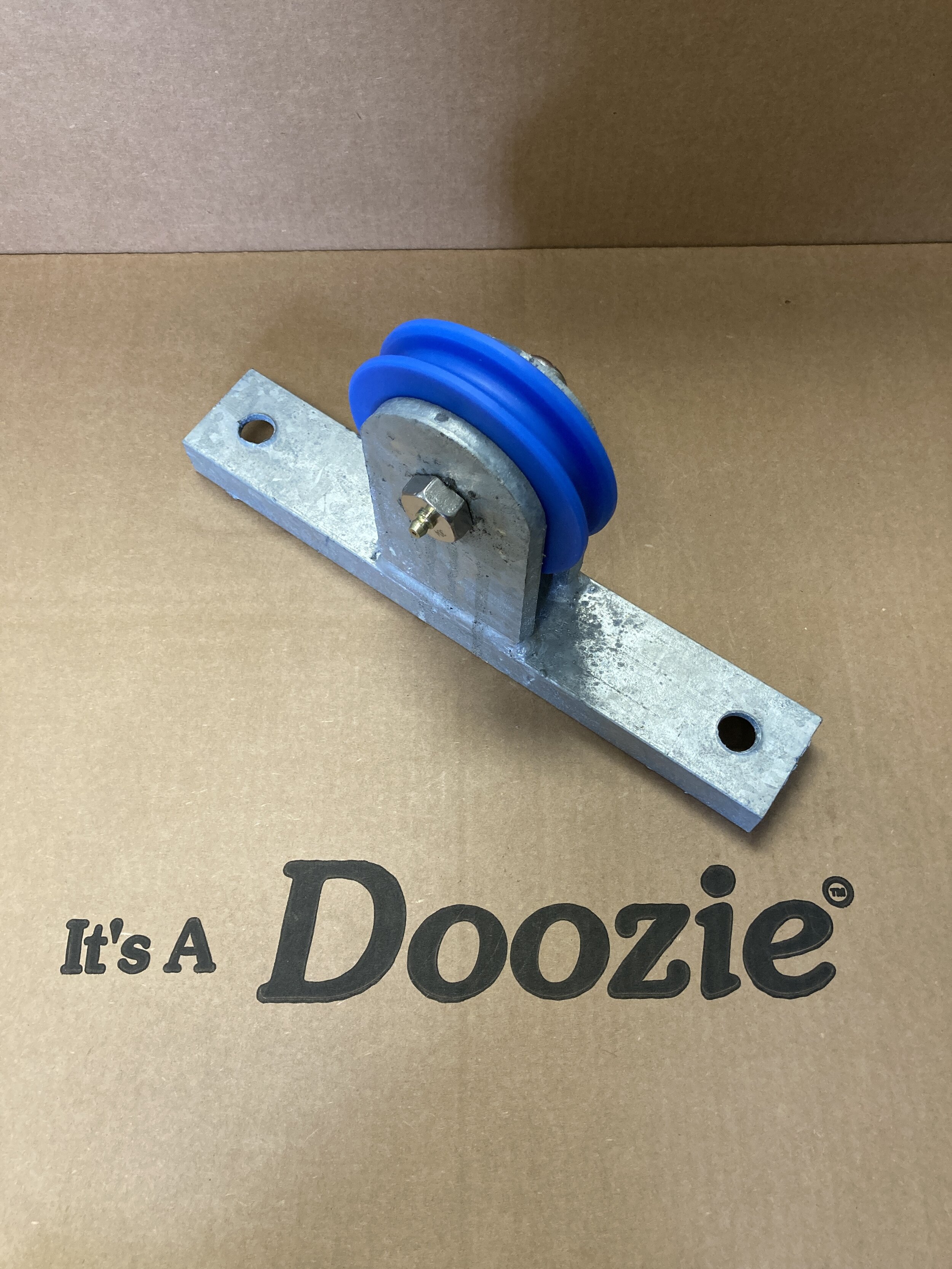

Pulley Hanger Complete

We have two different types of pulley hangers. Each uses the same blue pulley, nuts, and shaft.

Deluxe pulley hanger does not come with bolts but they can be bought separately. This is due to the fact that wood depths differ from dock to dock.

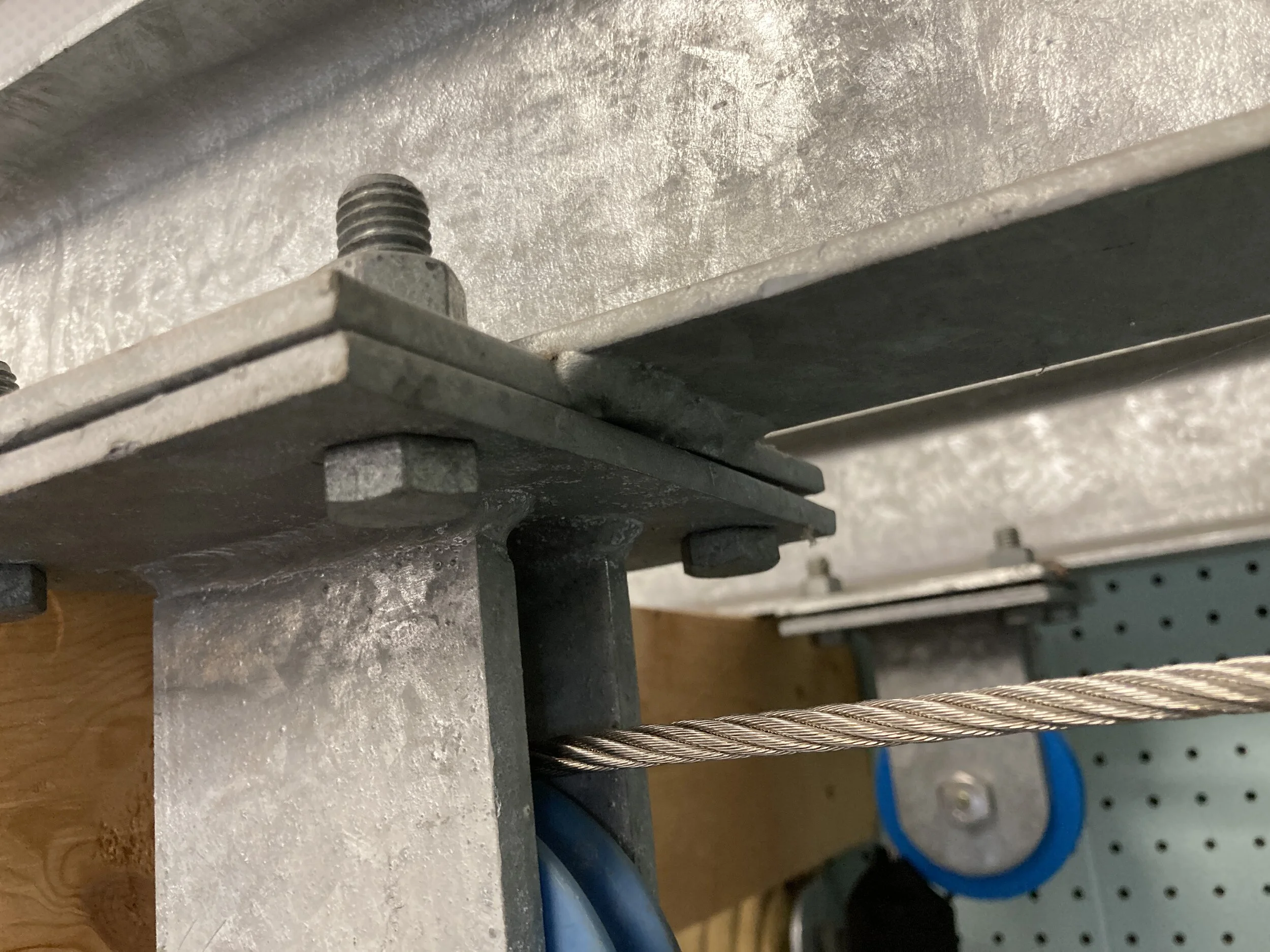

Pulley Hanger for Overhead Beam

We have two different types of pulley hangers. Each uses the same blue pulley, nuts, and shaft.

The overhead pulley hanger is use on the overhead beams of the 6000lb+ lifts. It does NOT come with nuts or bolts

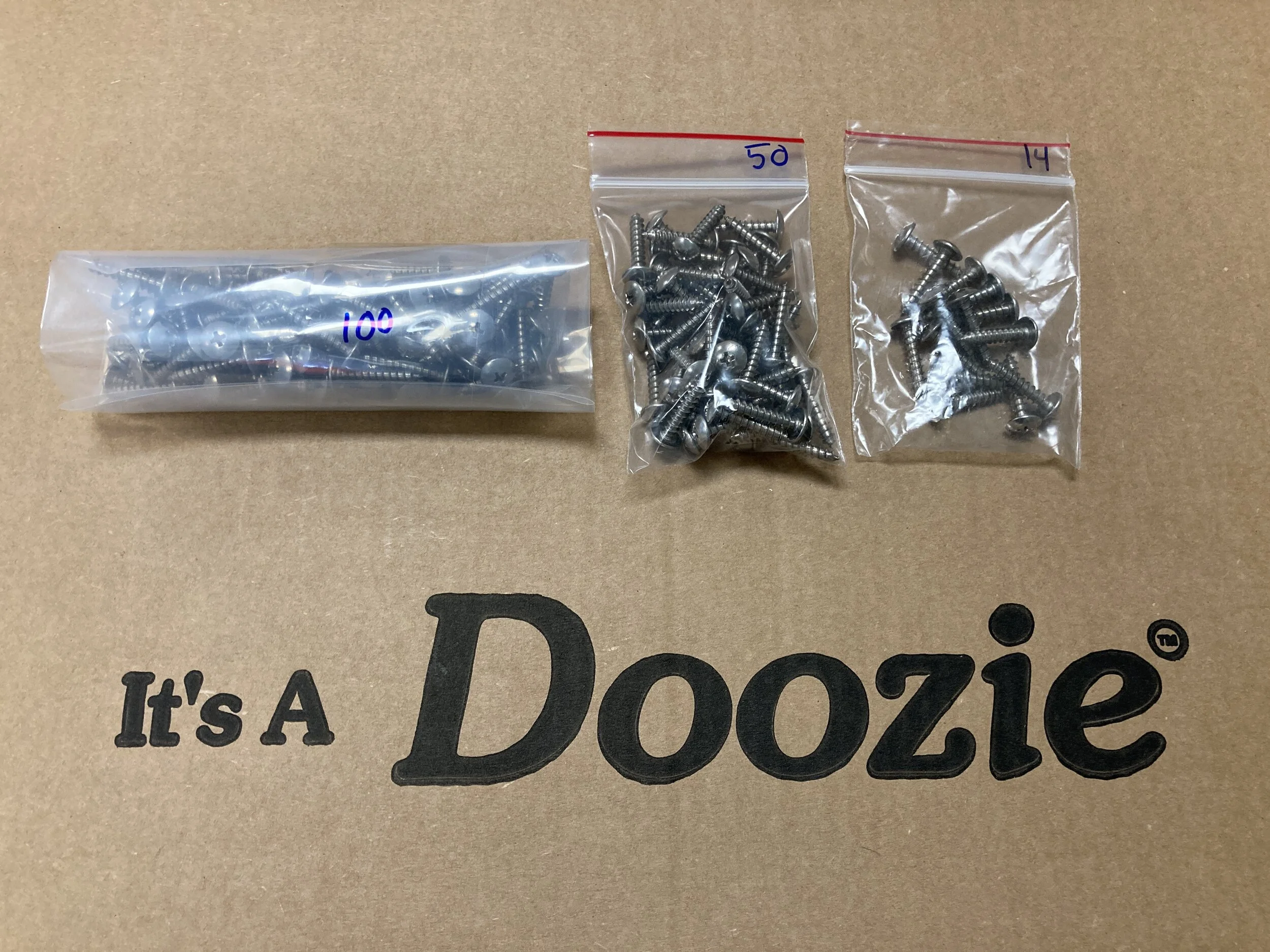

Screws

These screws come in bags of 14, 50, or 100 and are used for attaching bumpers to the dock

Straps

Straps are mainly used in very shallow waters. The come in 12 x 4 and 14 x 4 feet standard. We also have 16 x 6 and 20 x 6 feet options. Straps have weights woven in to keep them from floating however, we recommend added cables weights with them.

Walkaround Bolt Bag

Bolts are include when buying Walkarounds. Bolts can be bought separately.

• 8 - 1/2”x 3 1/2” Stainless Steel Bolts

• 4 - 1/2”x 4 1/2” Stainless Steel Bolts

• 2 - 1/2”x 1” Stainless Steel Bolts

• 14 - 1/2” Stainless Steel Nuts

• 4 - Tex Screws

Jet Ski Stand Bolt Package

• 4 - 1/2”x 3” Bolts

• 1 - 1/2”x 4” large Bolts

• 6 - 1/2” Nuts

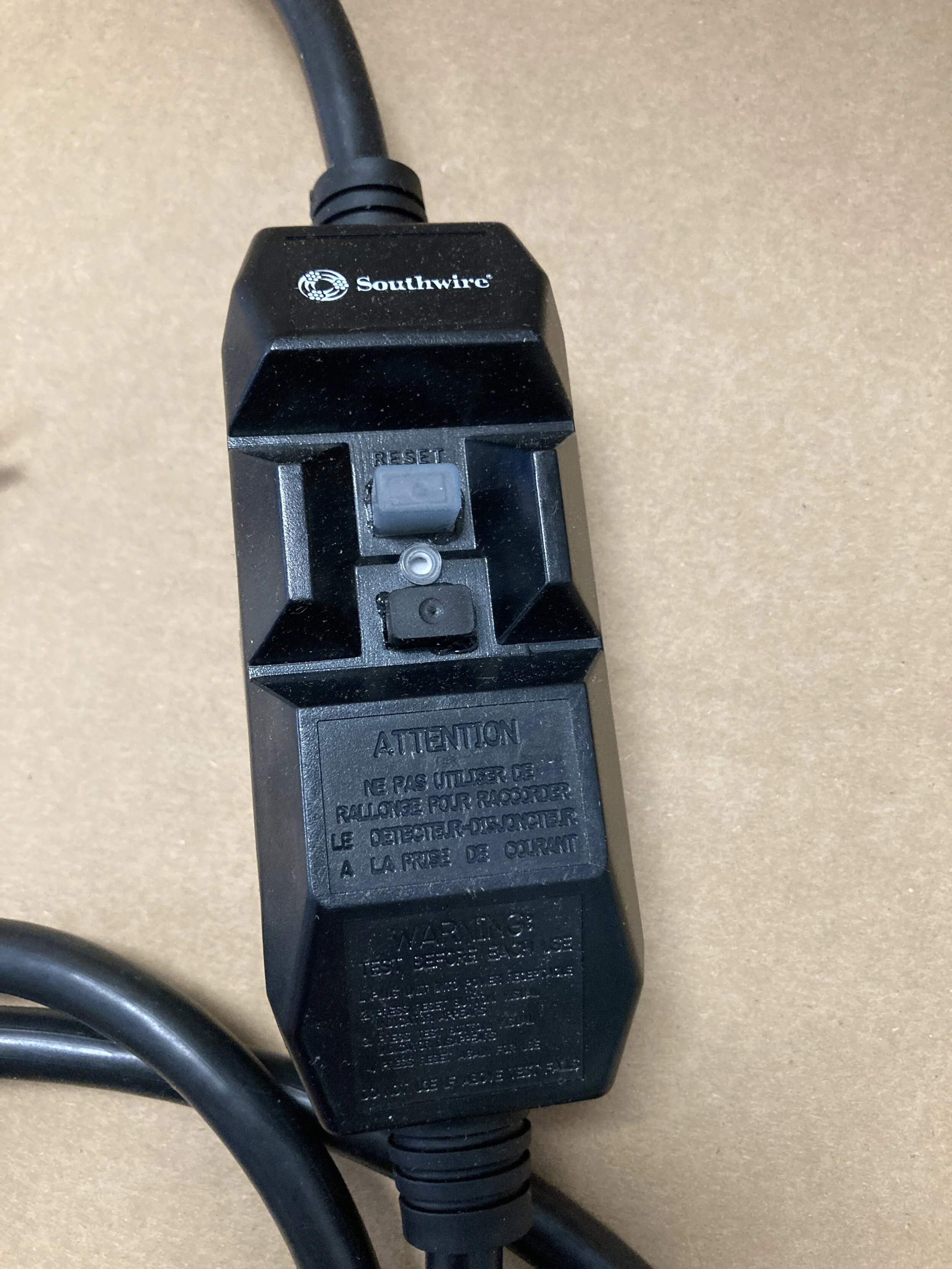

110 GFI Cord

These lifts come standards with 110V GFI

• Jet Ski lifts @12.2amps

• 3000BH Doozie Deluxe Lifts @6.1amps

• 4000BH Doozie Deluxe Lifts @6.8amps

• 4000BH Center Mount @6.8amps

• 4000BH Side Mount @13.6amps

• 6000BH Doozie Deluxe 2 Motor @24.4amps

• 6000BH Doozie 2 Motor @24.4amps

• 8000BH 2 Motor @24.4amps

We recommend upgrading to 220V

Note: Make sure your wires are properly grounded otherwise they can charge the water and rust any metal such as Jet Ski's tracks.

220 GFI Cord

These lifts come standard with 220V GFI

• 6000BH Center Mount @6.8amps

• 6000BH Side Mount @6.8amps

• 8000BH Side Mount @11amps

• 10,000BH 2 motor @13.6amps

All other lifts (but Jet Ski lifts) are recommended to be on 220V but come 110V standard. Just ask for 220V when ordering your lift. Note: Make sure your wires are properly grounded otherwise they can charge the water and rust any metal such as Jet Ski's tracks.

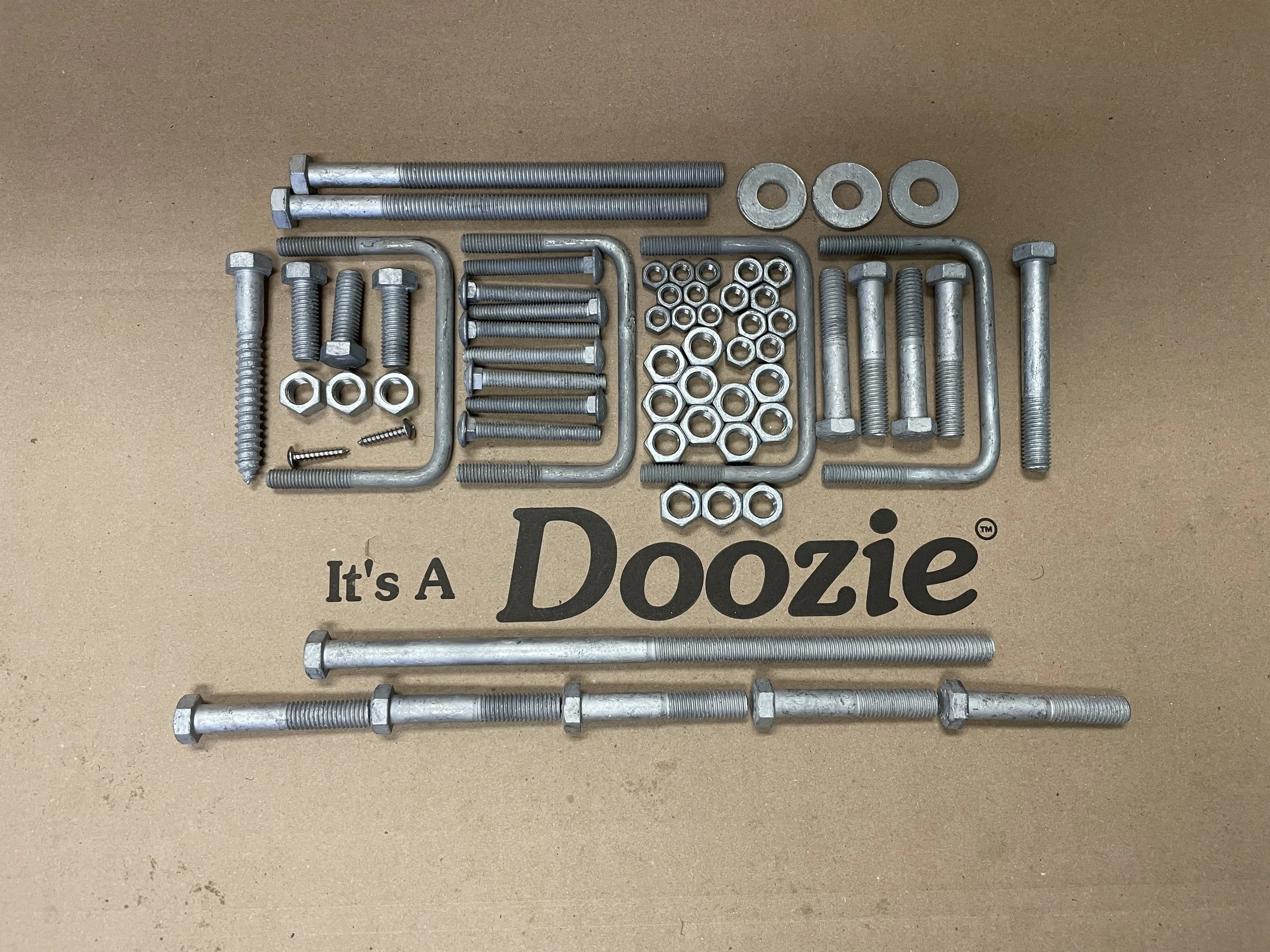

2000 Jet Ski piling Lift Bolt Bag Complete

• 4 - 4 1/2” U Bolts

• 1 - 1/2”x 4” Lag Bolt

• 4 - 1/2”x 3” Bolts

• 3 - 1/2”x 12” Bolt

• 2 - 1/2” x 8 Bolts

• 3 - 1/2” x 1 1/2” Bolts

• 12 - 1/2” Nuts

• 3 - 1/2” Washers

• 8 - 5/16” Carriage Bolts

• 8 - 3/8” Nuts

• 2 - Stainless Steel Screws

2000 Jet Ski Stand Lift Bolt Bag Complete

• 4 - 4 1/2” U Bolts

• 1 - 1/2”x 4” Lag Bolt

• 4 - 1/2”x 3” Bolts

• 1 - 1/2”x 12” Bolt

• 2 - 1/2” x 8 Bolts

• 3 - 1/2” x 1 1/2” Bolts

• 10 - 1/2” Nuts

• 3 - 1/2” Washers

• 8 - 5/16” Carriage Bolts

• 8 - 3/8” Nuts

• 2 - Stainless Steel Screws

Stand Bag sold separately. It includes

• 2 -1/2 x 4” Bolts

• 4 - 1/2 x 3” Bolts

• 6 - 1/2 Nuts

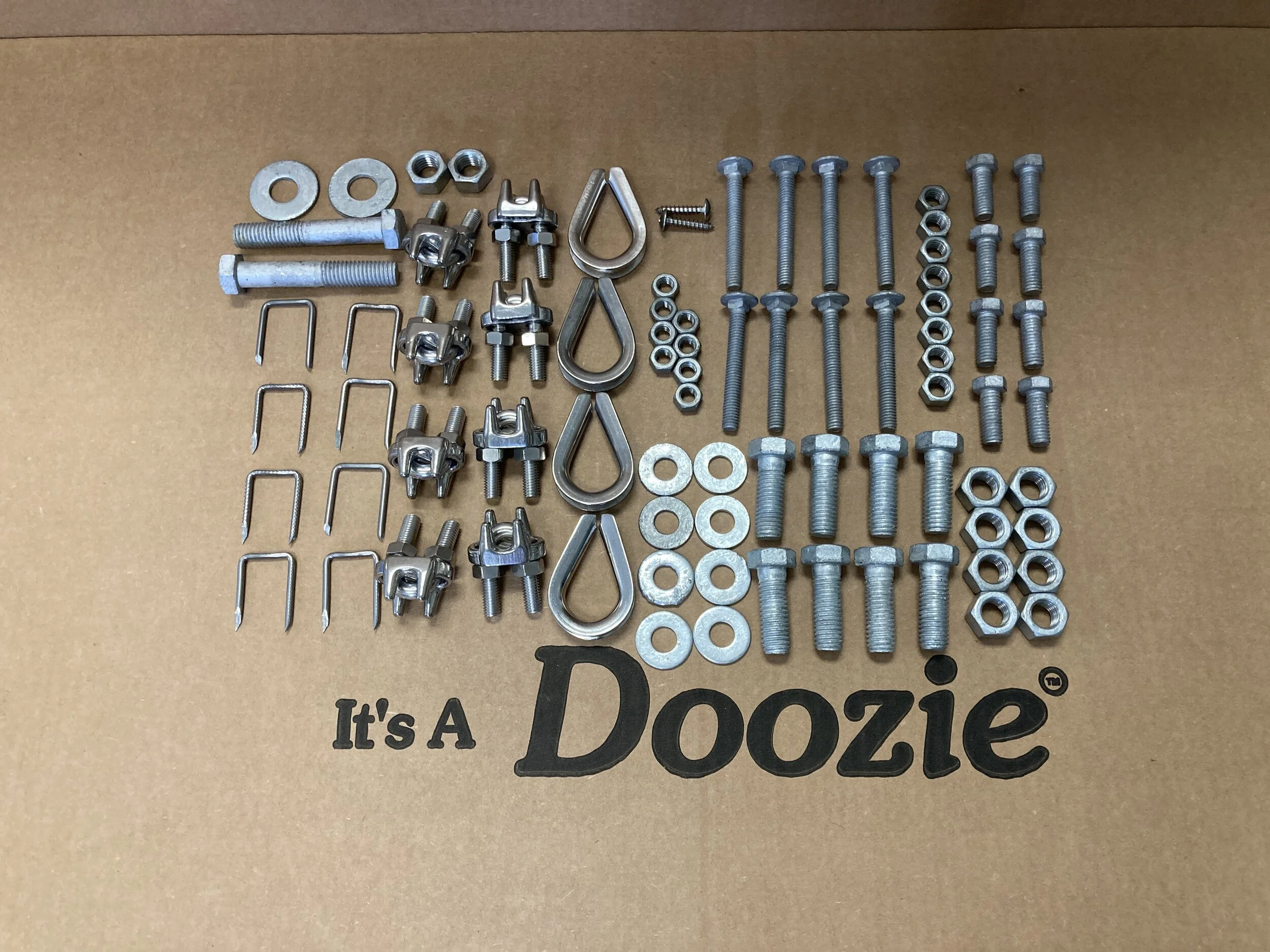

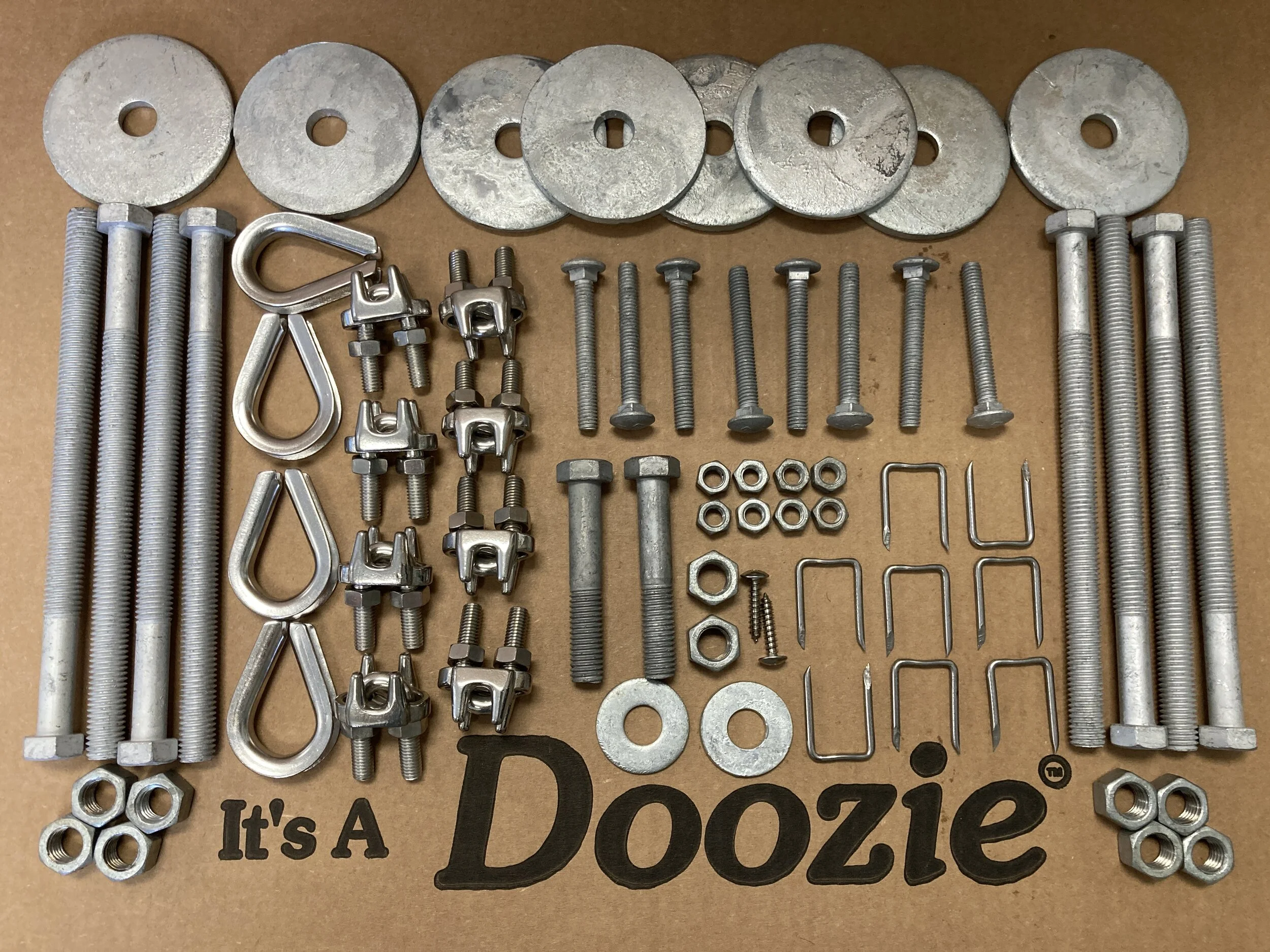

4000lb Doozie Deluxe Bolts Bag

This is the complete bolt bag for the 4000lb Doozie Deluxe Lift.

• 8 - 1/2”x 8” Bolts

• 8 - Staples

• 2 - Wood Screws

• 2 - 1/2” Washers

• 10 - 1/2” Nuts

• 2 - 1/2”x 3” Bolts

• 8 - 3” Washers

• 8 - 5/16 Carriage Bolts

• 8 - 5/16 Nuts

• 4 - 1/4” Stainless Steel Thimbles

• 8 - 1/4” Stainless Steel Clamps

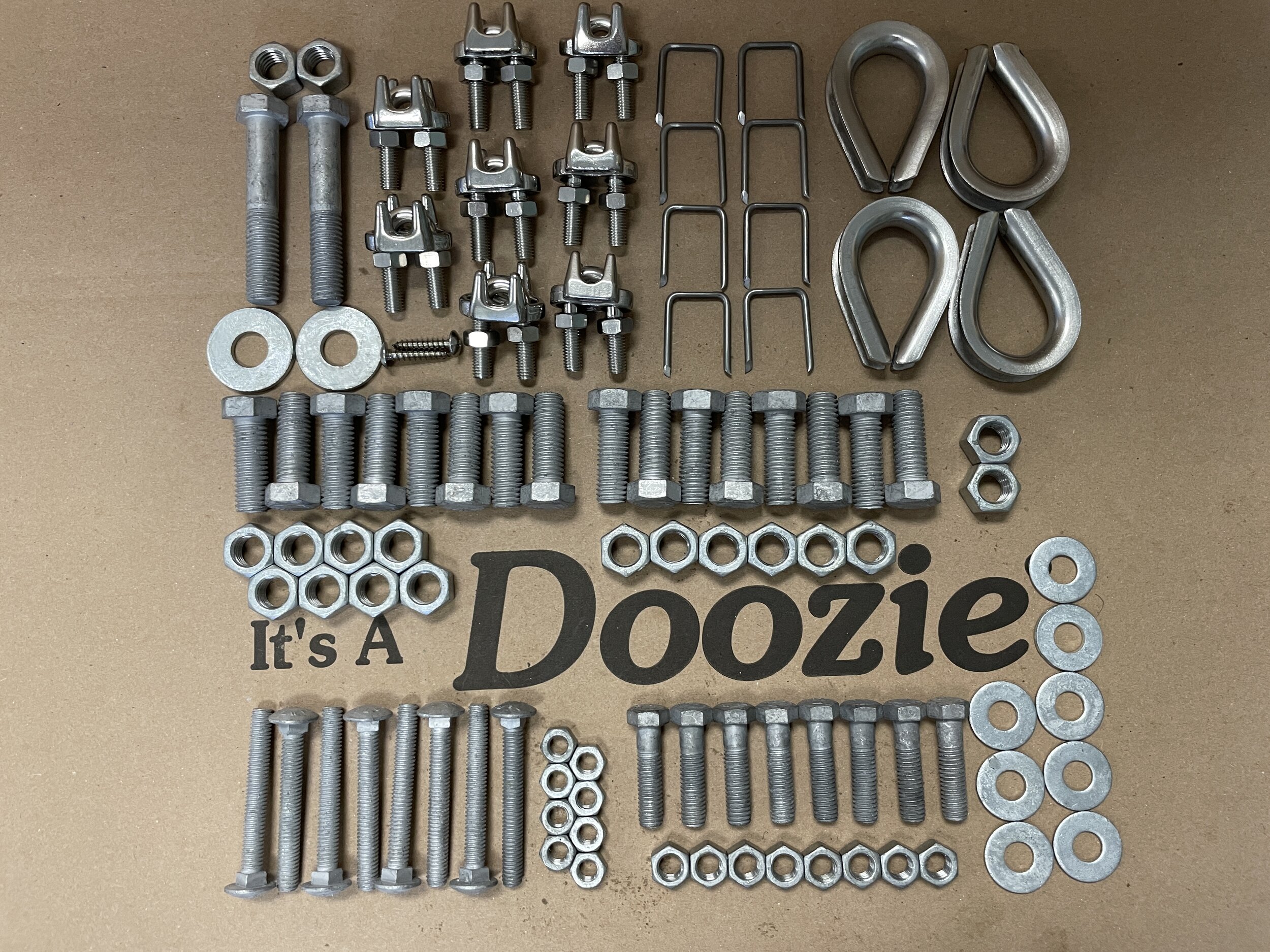

4000BH Side Mount Lift Bolt Bag

This is the complete bolt bag for the 4000lb Side Mount Lift.

• 18 - 1/2” Nuts

• 2 - 1/2” Washers

• 2 - 1/2” x 3” Carriage Bolts

• 16 - 1/2” x 1 1/2” Bolts

• 8 - 5/16” x 2 1/2” Carriage Bolts

• 8 - 5/16” Nuts

• 8 - 3/8” x 1” Bolts

• 8 - 3/8” Washer

• 8 - 3/8” Nuts

• 8 - Staples

• 2 - Wood Screws

• 4 - 1/4” Stainless Steel Thimbles

• 8 - 1/4” Stainless Steel Clamps

4000BH Center Mount Lift Bolt Bag Complete

This is the complete bolt bag for the 4000lb Center Mount Lift.

• 2 - 1/2” Washers

• 2 - 1/2”x 3” Bolts

• 10 - 1/2” Nuts

• 8 - 1/2”x 1 1/2 Bolts

• 8 - 5/16” Carriage Bolts

• 8 - 5/16” Nuts

• 8 - 3/8”x 1 Bolts

• 8 - 3/8” Nuts

• 8 - 3/8” Washers

• 8 - Staples

• 2 - Wood Screws

• 4 - 1/4 stainless steel Thimbles

• 8 - 1/4” Stainless Steel Clamps

6000BH Center Mount Lift Bolt Bag Complete

This is the complete bolt bag for the 6000lb Center Mount Lift. The only difference between this bolt bag and the 4000lb bolt bag is 5/16 stainless steel symbols

• 2 - 1/2” Washers

• 2 - 1/2”x 3” Bolts

• 10 - 1/2” Nuts

• 8 - 1/2”x 1 1/2 Bolts

• 8 - 5/16” Carriage Bolts

• 8 - 5/16” Nuts

• 8 - 3/8”x 1 Bolts

• 8 - 3/8” Nuts

• 8 - 3/8” Washers

• 8 - Staples

• 2 - Wood Screws

• 4 - 5/16 stainless steel Thimbles

• 8 - 1/4” Stainless Steel Clamps

6000lb Side Mount Bolt Bag Complete

This is the complete bolt bag for the 6000lb Side Mount Lift.

• 8 - Staples

• 2 - Wood Screws

• 2 - 1/2” Washers

• 18 - 1/2” Nuts

• 2 - 1/2”x 3” Bolts

• 8 - 5/16” Carriage Bolts

• 8 - 5/16 Nuts

• 16 - 1/2”x 1 1/2” Bolts

• 8 - 3/8”x 1” Bolts

• 8 - 3/8” Nuts

• 4 - 5/16” Stainless Steel Thimbles

• 8 - 1/4” Stainless Steel Clamps
